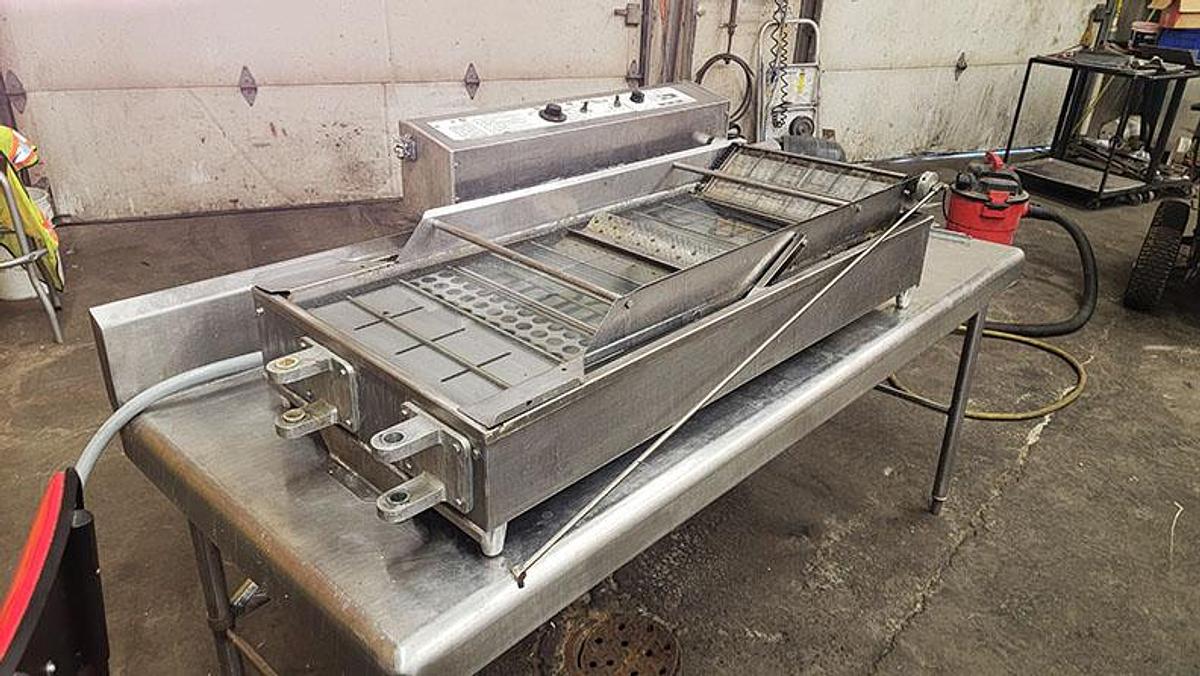

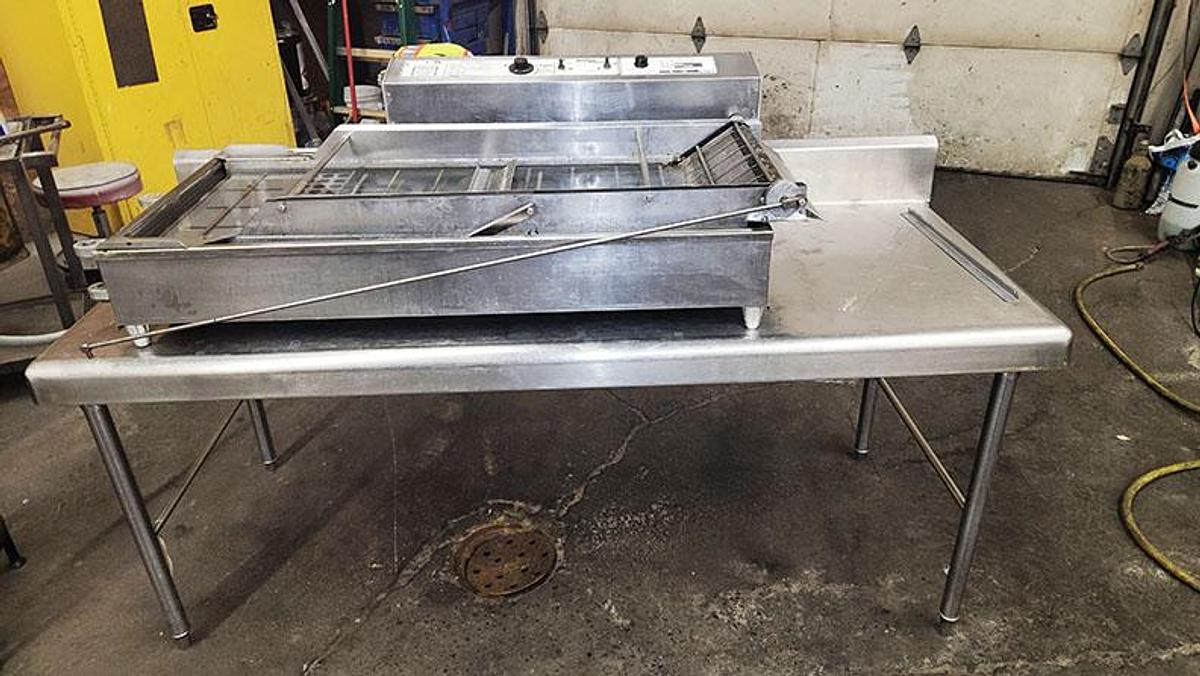

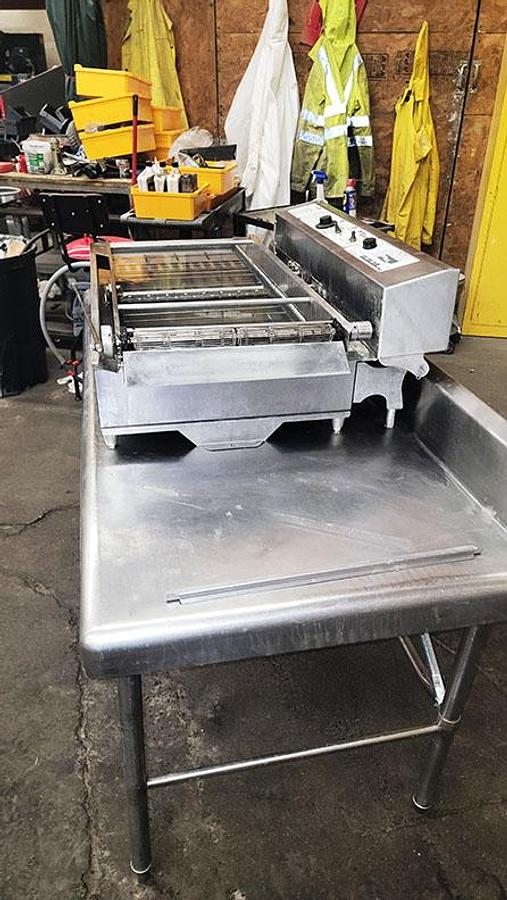

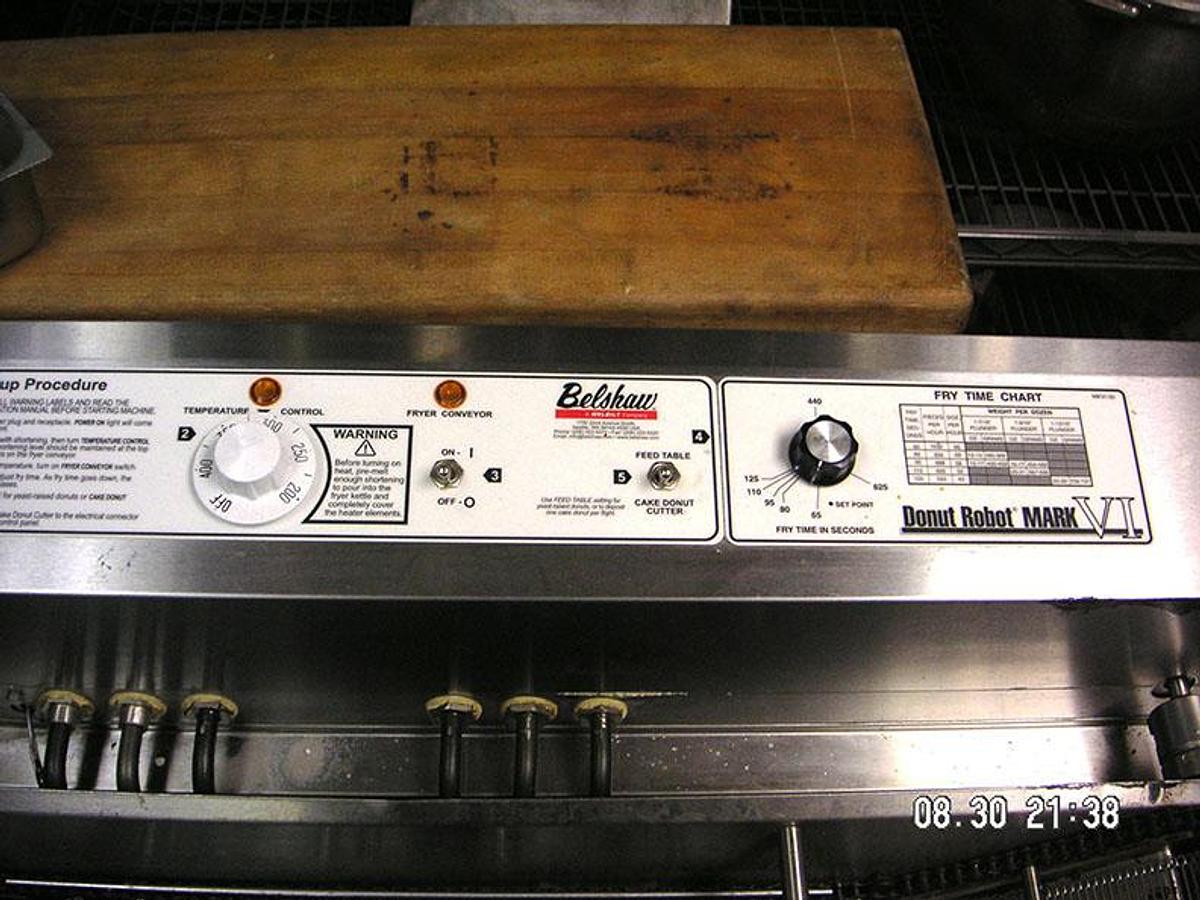

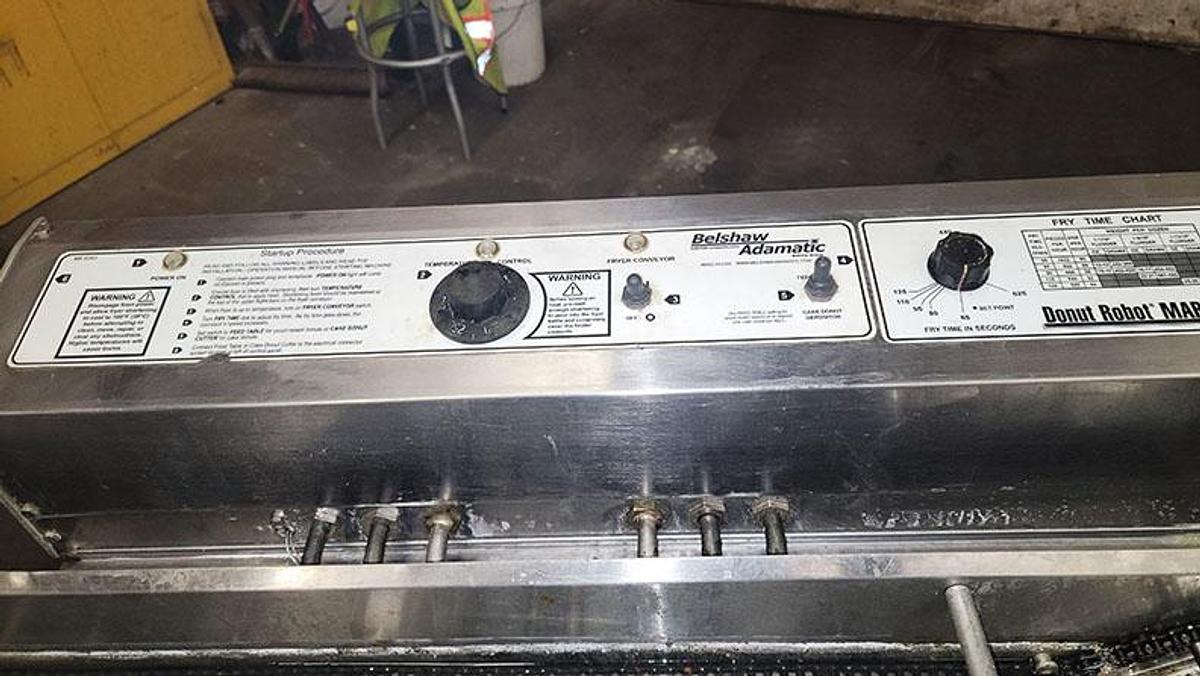

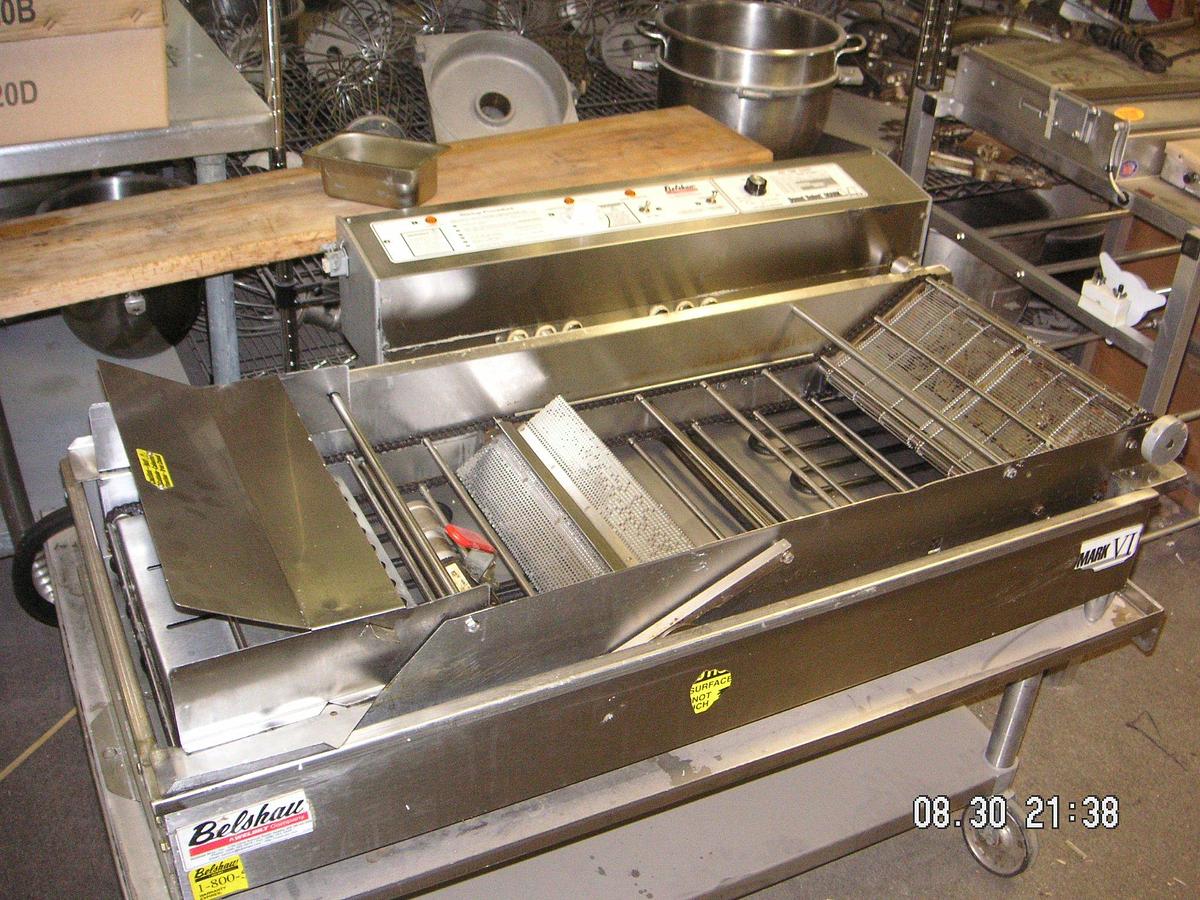

Belshaw Mark VI

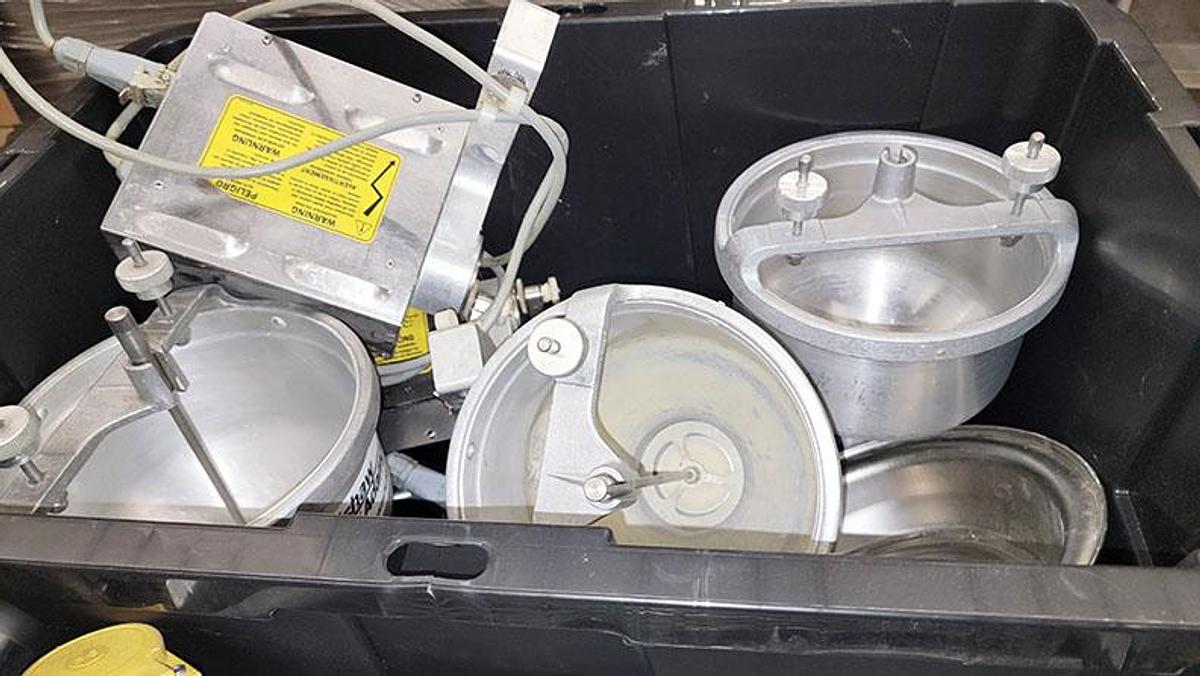

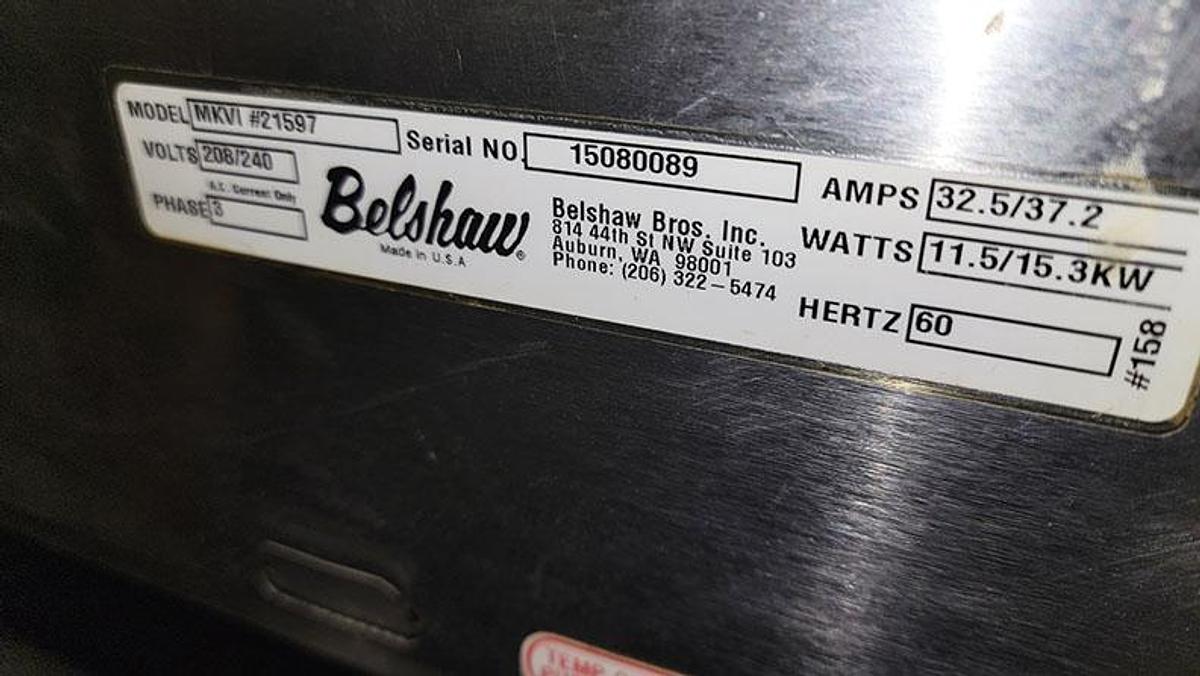

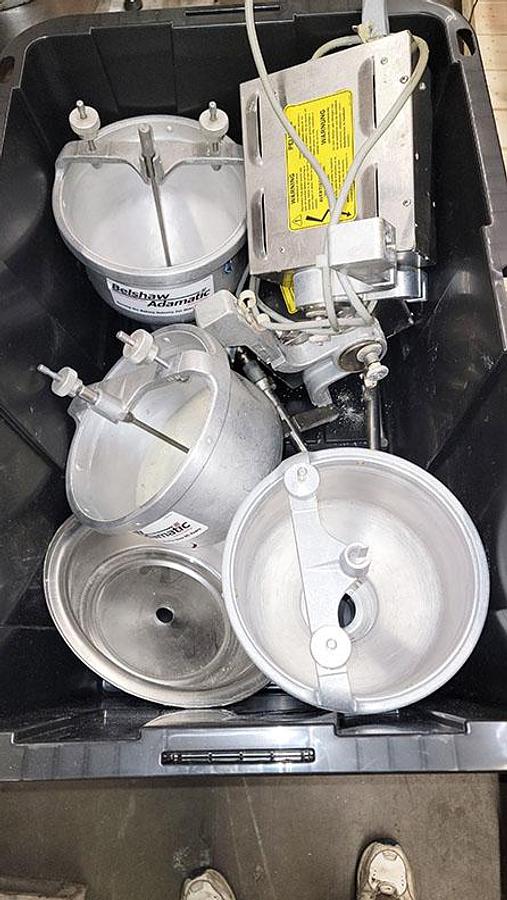

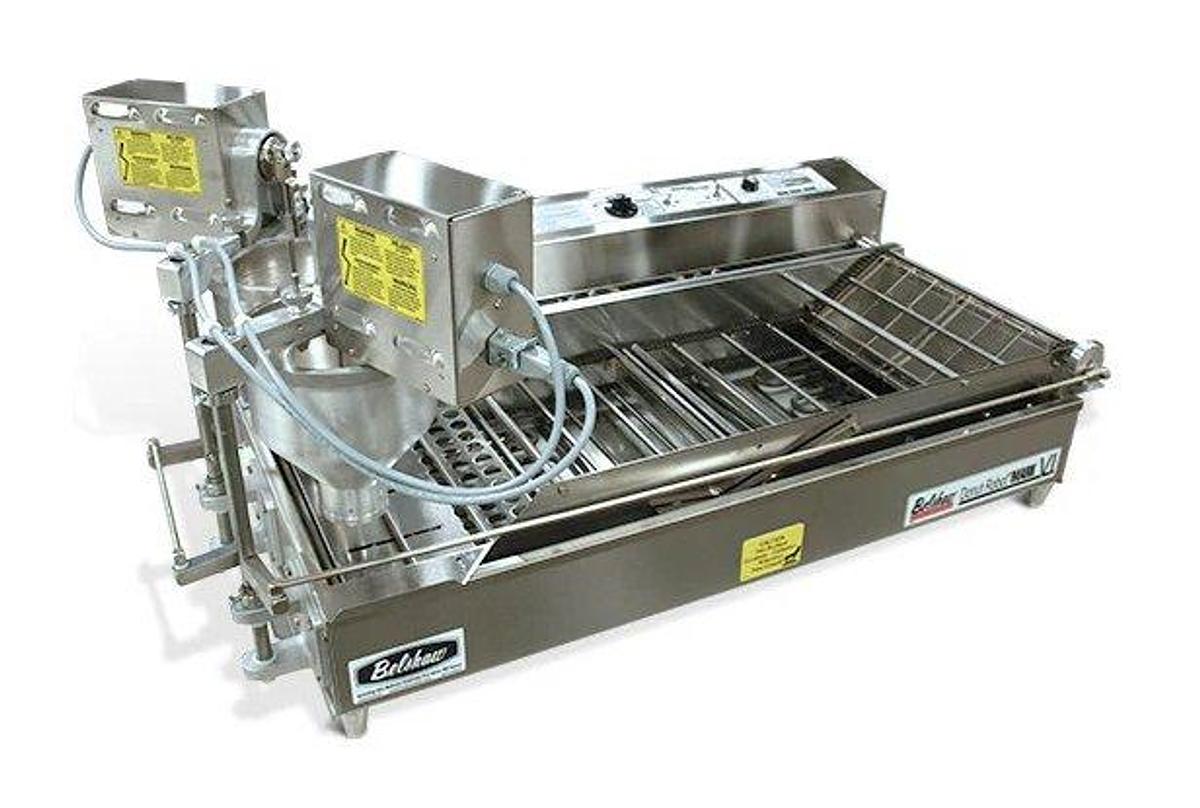

Belshaw Mark VI Dual Depositor, Electric, Voltage: 208-240 / 3 Ph

MARK VI FRYER FEATURES:

* Stainless steel kettle construction.

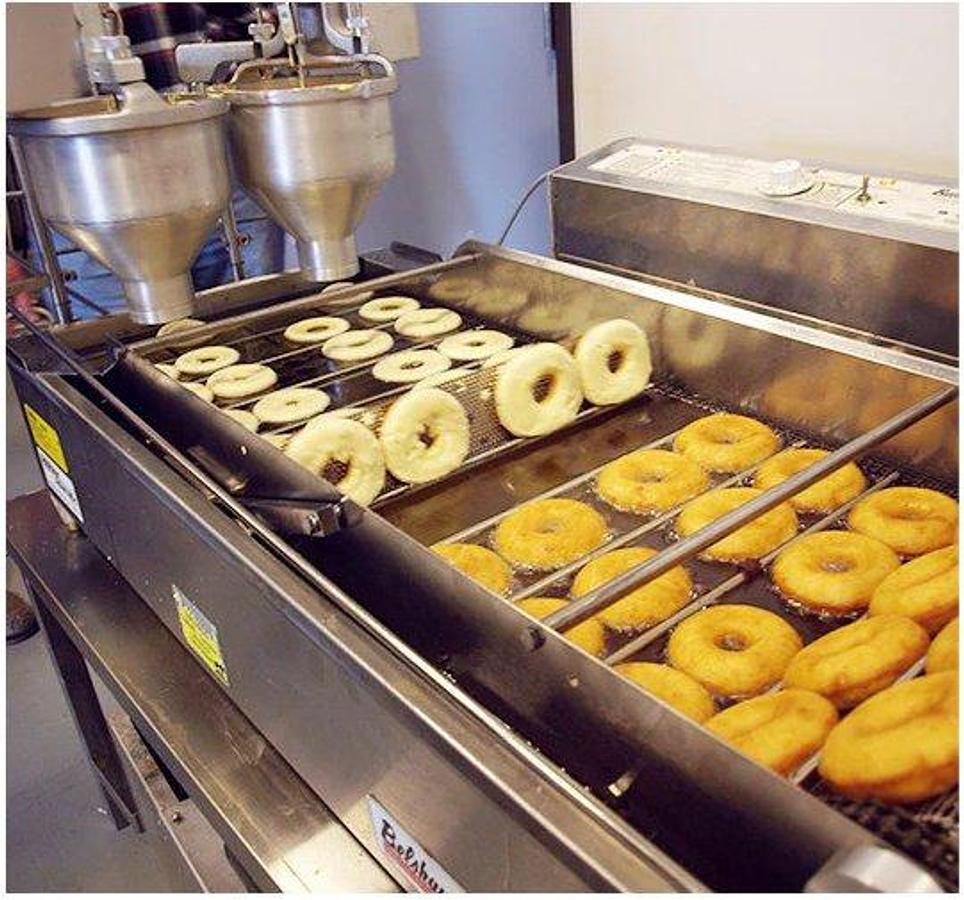

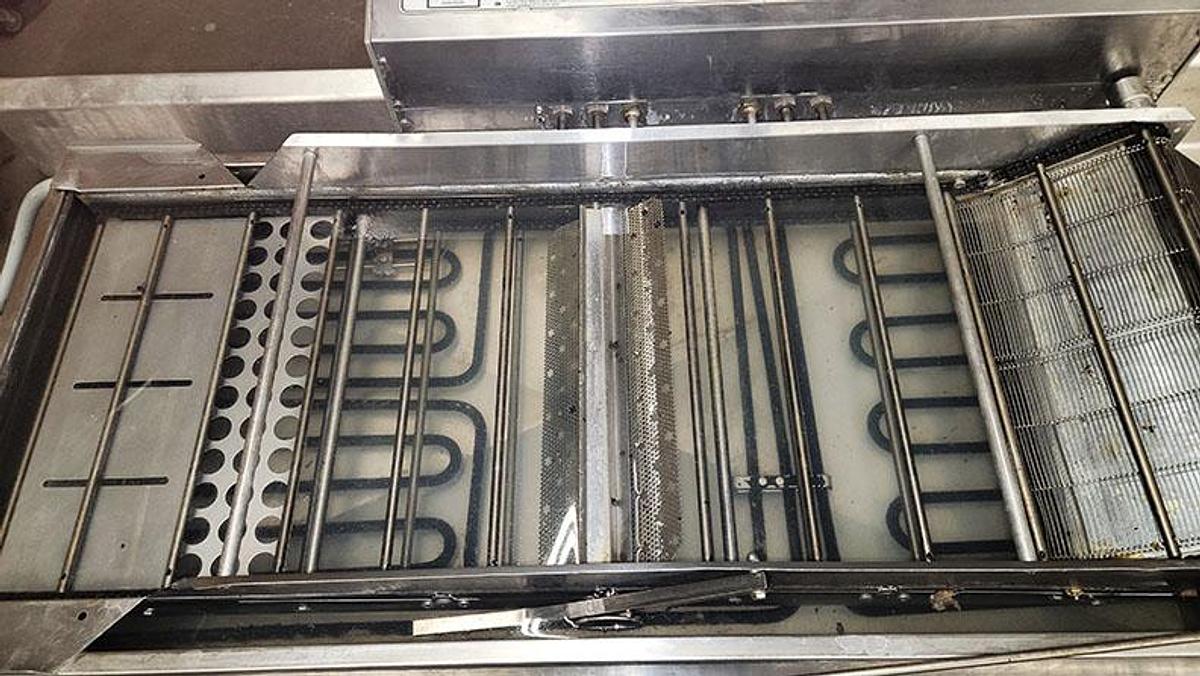

* Stainless steel conveyor with flight bar system for advancing donuts.

* Automatic turning and dispensing of donuts.

* Holds 4 donuts per flight bar pocket.

* Mark VI Standard: conveyor may be chosen with flight bars spaced 3¾ inches (95mm) or 4½" (114 mm), from center-to-center.

* Adjustable frying times from approximately 65 to 360 seconds.

* High-accuracy electronic temperature controller.

* High durability, low watt-density heating elements.

* High temperature safety limit switch.

CERTIFICATIONS:

* Certified to UL-197, CSA C22.2, NSF-169.

MARK VI FRYER SPECIFICATIONS:

Frying Width: 16"

Frying Depth: 4.5"

Shortening Capacity: 124 lbs

(by weight, approximate)

Shortening Capacity: 17 gal

(by volume, approximate)

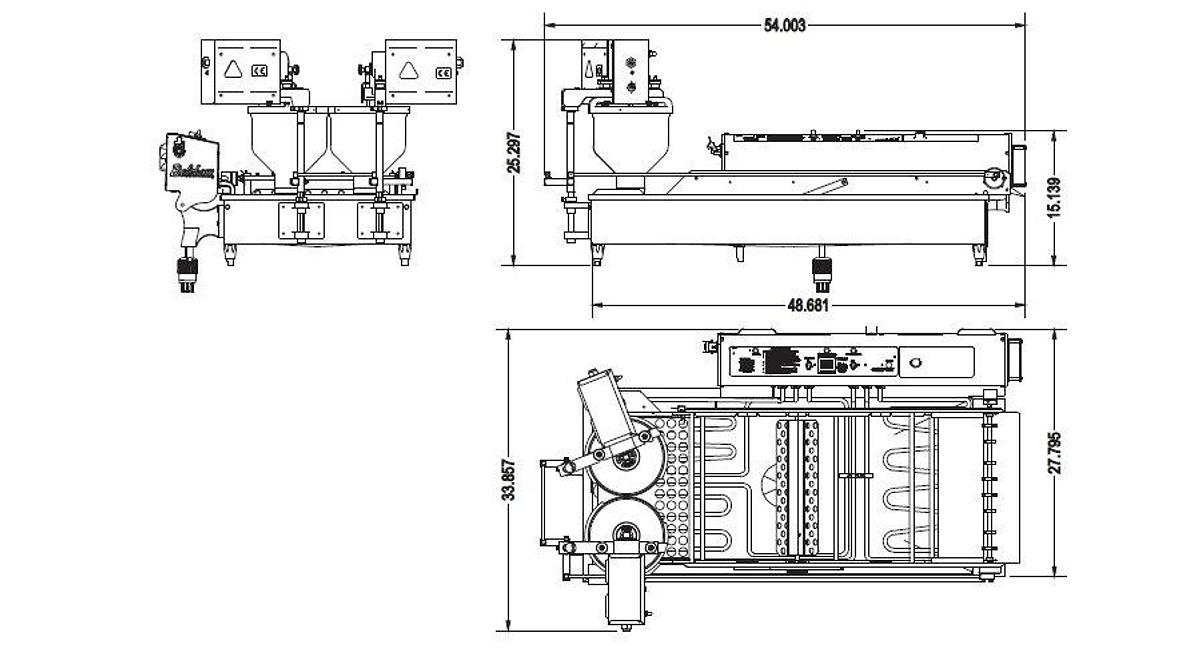

Shipping Dimensions: 56" x 34" x 20"

(estimated)

Shipping Weight: 190 lbs

(estimated)
