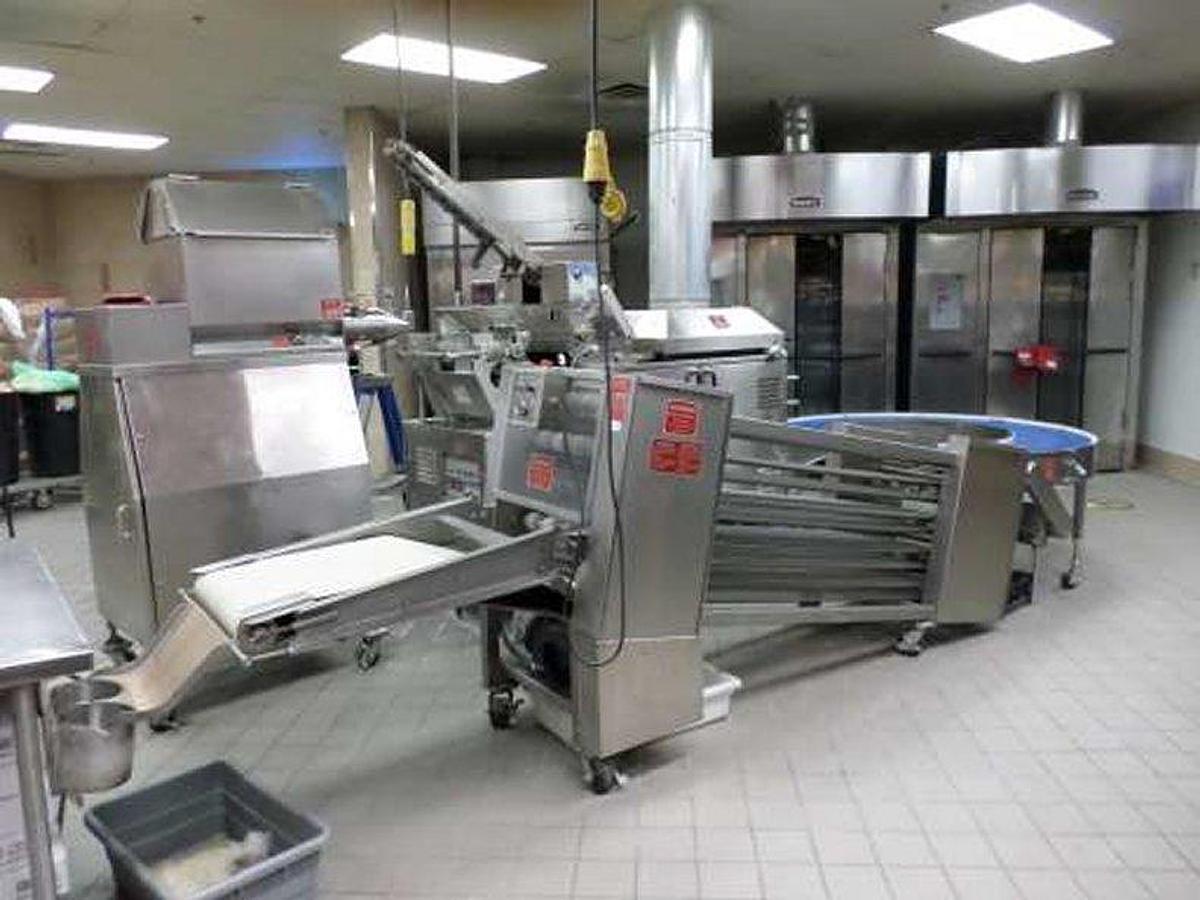

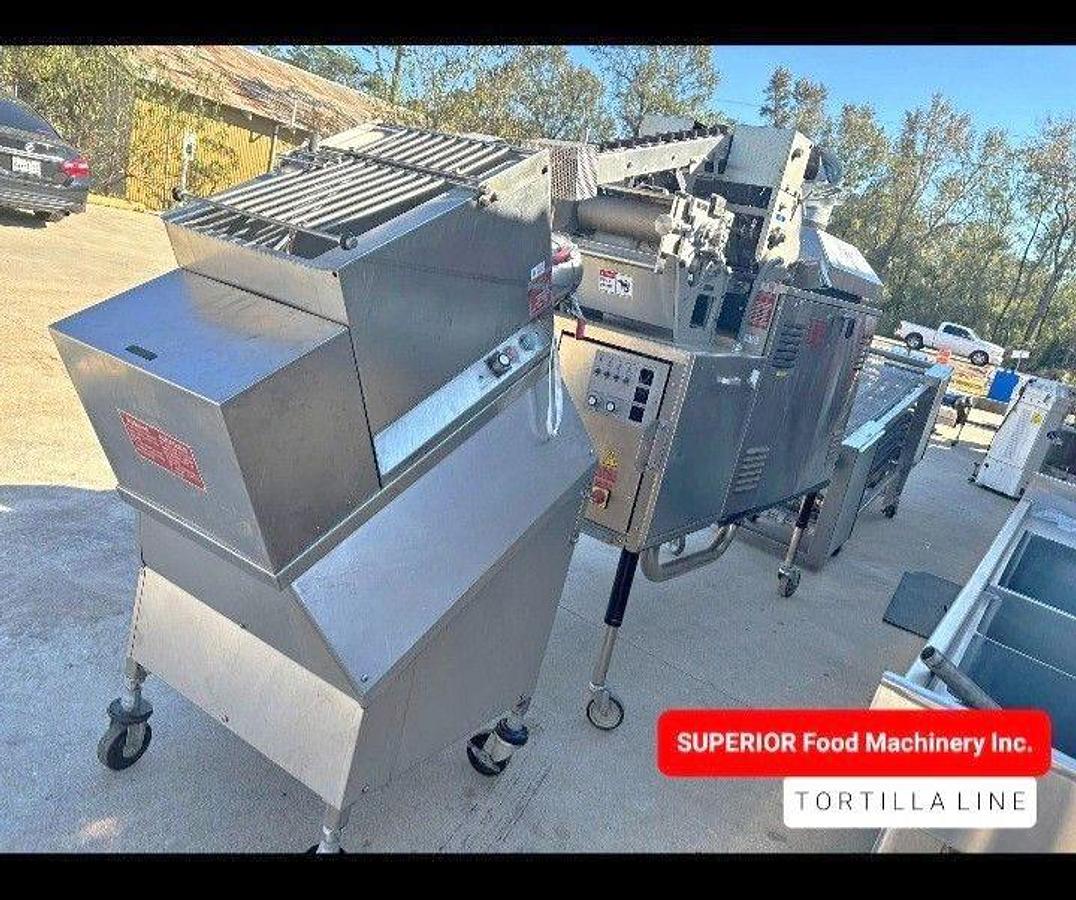

Superior Tortilla System

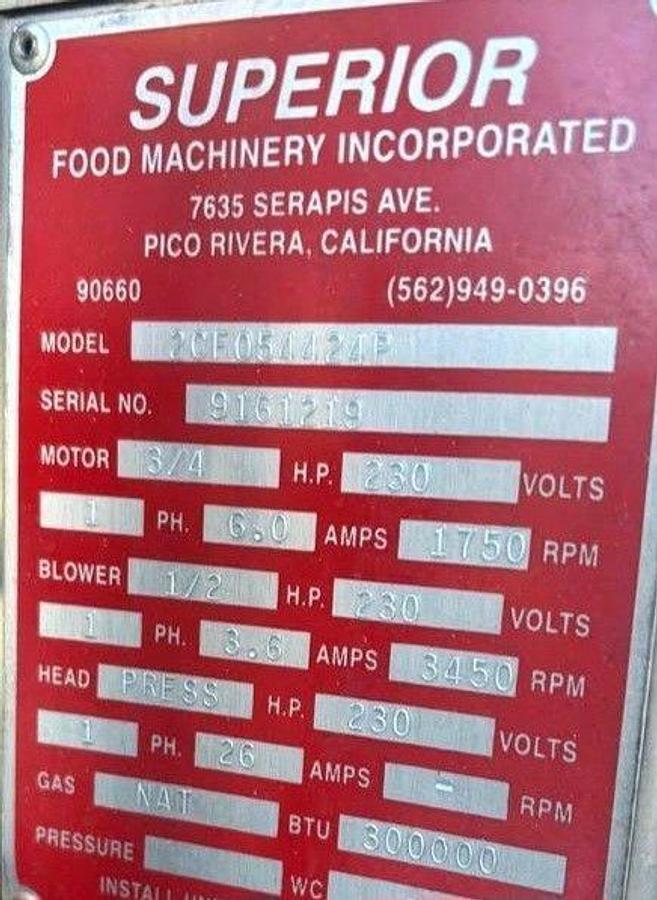

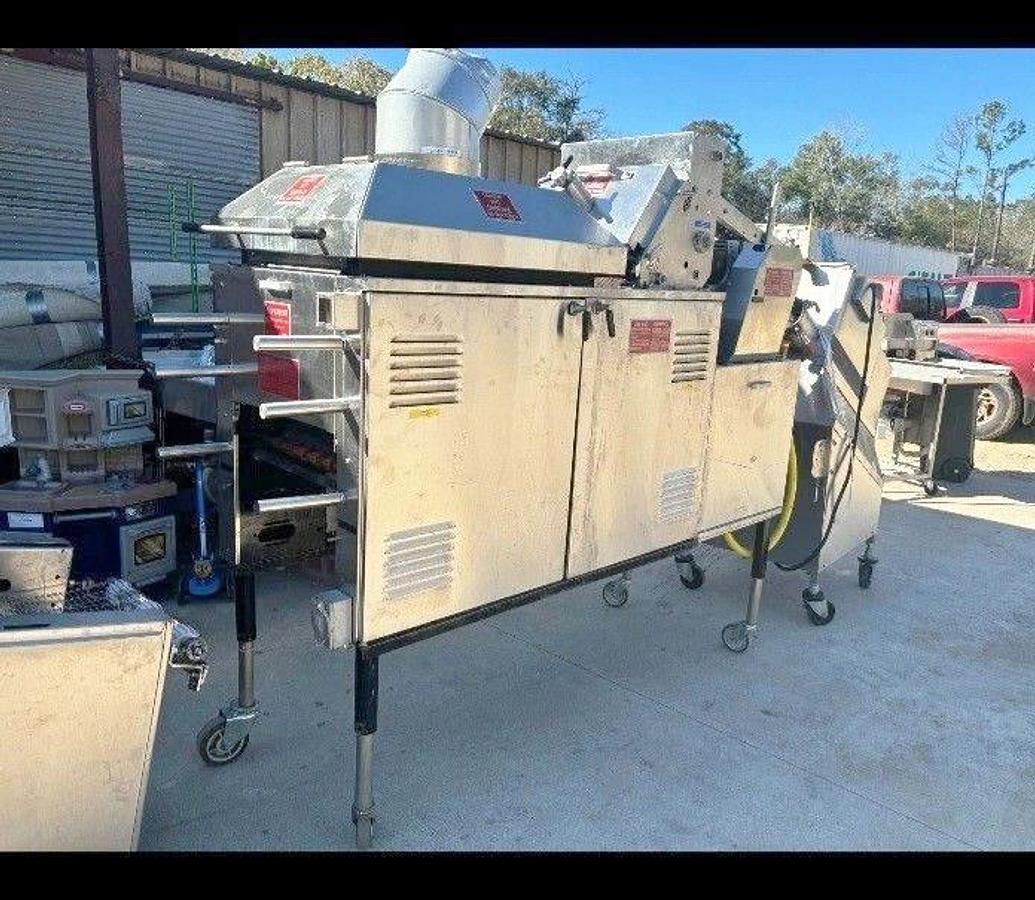

1) Superior Md. #2CFO 54 42 4P Double Corn Tortilla w/ on board Super Flour Press Baking Oven / Over Under Conveyor Baking chamber: 54” long.

Production capacity: “Corn Tortilla Capacity 100-350 dz./hr.” (Based on a 6” diameter / 10 oz. per dozen table tortilla.

(All production rates are dependent on dough moisture rates, dough texture characteristics and size and weight).

Production capacity:

Wheat Flour Tortilla Capacity

(Casero Type) / (Home Made Type)

Tortilla Press: 16” x 17½“ super press platens.

(6” dia.) 180 dozen per hour.

(7-10” dia.) 90 dozen per hour.

(11-13” dia.) 30 dozen per hour.

**Corn tortillas sheeter head 4½” x 15” rollers.

• Baking bands: 3 ea. Slat type.
• Pre-mix combustion system.
• Ribbon type burners.
• Electronic variable speed control.
• High temperature graphite main shaft bearings.
• Spring tensioned baking bands.
• 2” x 15½” curved baking bands.
• Oversized oven roller chain on baking bands.
• Heat-treated sprockets throughout.
• Easy access lubrication. Stainless steel trim.
• Independent single lever gas adjustment.
• Stainless steel double insulated hinged oven door panels.
• Double hinged hood for easy application of Teflon spray.
• Easy to understand control panel.

** Press:

• Teflon coated press plates.
• Dual digital temp controls.
• High efficiency cartridge heaters.
• Single knob press thickness control.

** Sheeter

• Corrosion resistant heavy-duty bearings.
• Water escape feature on bearings.
• Anodized aluminum side frames.
• Spring loaded rocker arm cutting mold supports.

** Safety

• Gas flame supervision.
• Totally enclosed fixed gear guard on sheeter.
• Magnetic interlocks on sheeter hopper (prevents sheeter
• from operating with hopper removed).
• Magnetic interlock on table panel (prevents access to
• motor compartment while machine is running).
• Magnetic interlock on cutting mold guard.
• Emergency stop wand for quick and easy stopping.
• Emergency stop button at front of oven.
• “ETL” listed to NSF/ ANSI Standard 4

Heavy Duty #D50 chain drive. Easy access lubrication.

Heat treated sprockets throughout. Easy to operate controls.

Electronic variable speed control. Heavy duty motor and

speed reducer.

“ETL” listed to NSF/ANSI Standard 8.

Proudly Made in the “USA”.

Specs

230 V., 3 phase, 60 amp.

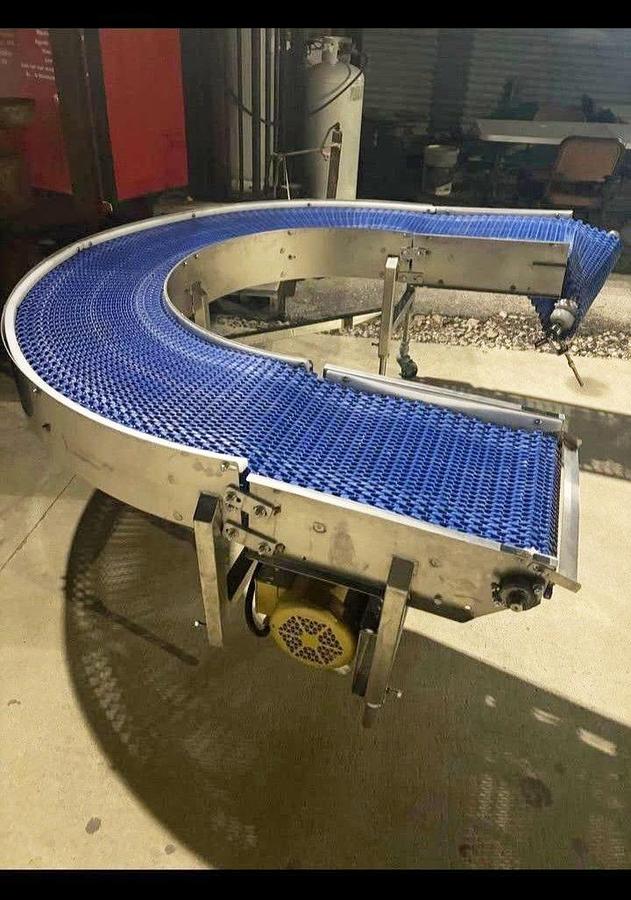

** Md. #180-15 U Turn Conveyor

• Heavy-duty stainless-steel frame mounted on casters.
• Heavy-duty 15”-wide food approved belting.
• Long wearing low friction belt supports.
• Heat-treated sprockets throughout.
• Easy access lubrication.
• Easy to operated control panel.
• Electronic variable speed control.
• Heavy-duty motor and speed reducer.
• Safety
• Emergency stop button for quick and easy stopping.

Proudly Made in the “USA”.

Specs

208 V / 1 phase / 5.9 amp.

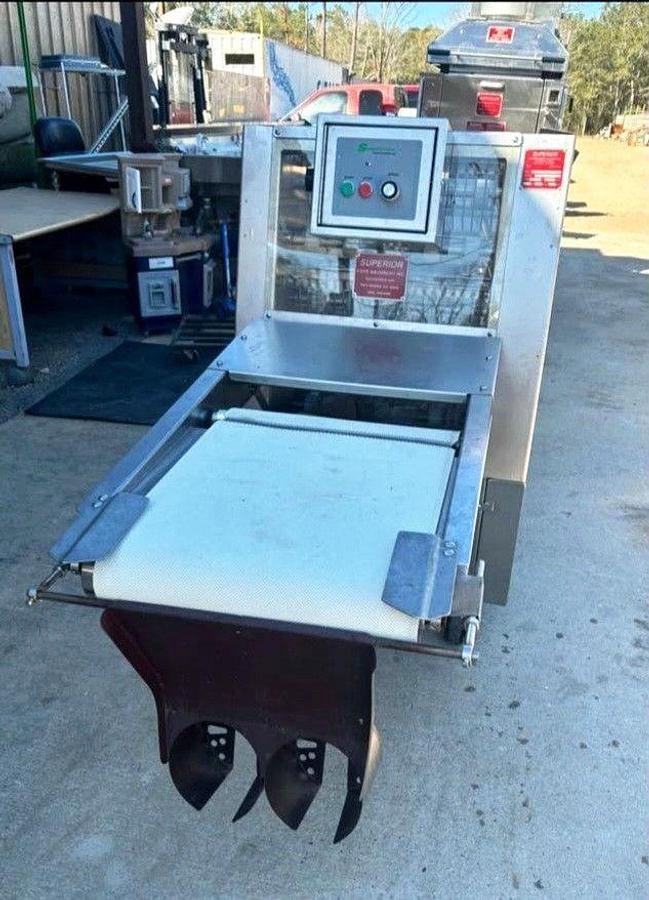

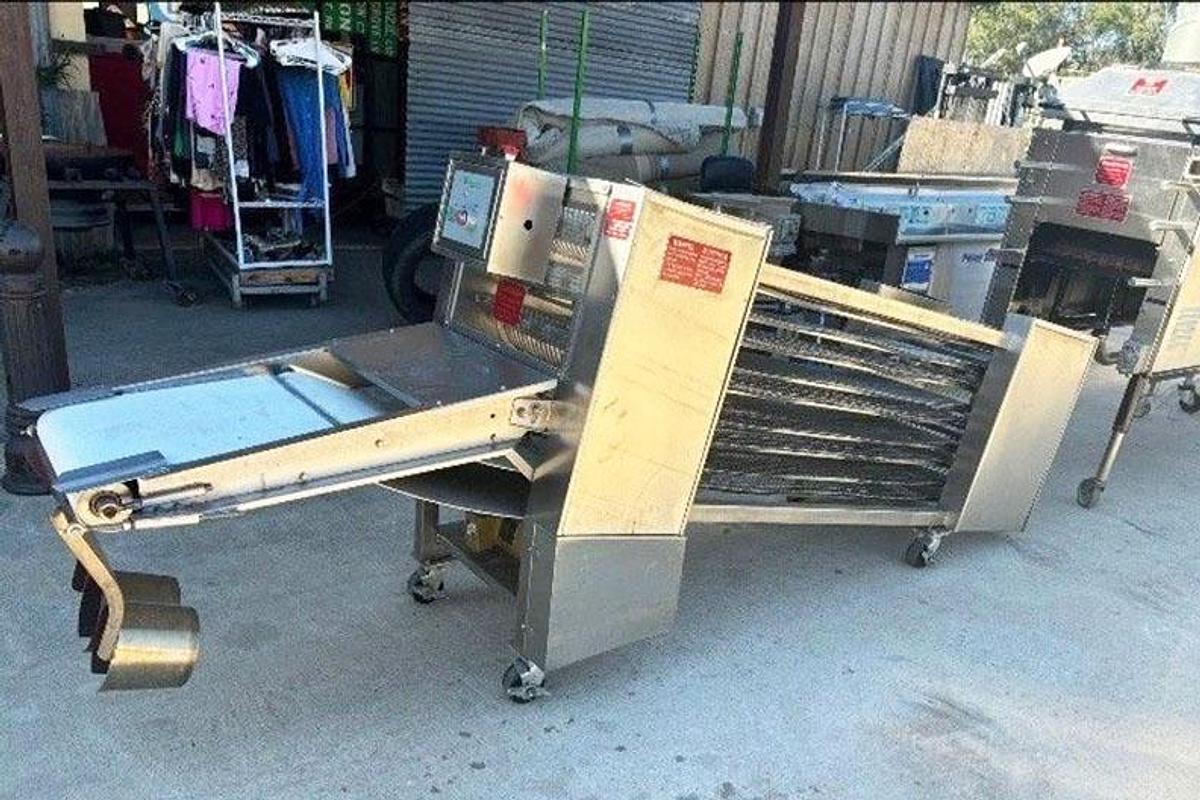

** Md. #5188 INEQ Cooling Conveyor

• 5 Cooling belts with 8 ft. centers. To have pickup tail
• extending into the corn superior double oven.
• Heavy-duty stainless-steel frame mounted on casters.
• Heavy-duty 18” wide stainless-steel equalized
• balance weave belting.
• Long wearing low friction belt support.
• Stainless steel low friction solid product sliding chutes.
• UHMW positive tracking belt sprockets.
• Heat treated sprockets throughout.
• Easy access lubrication. Easy to operate control panel.
• Electronic variable speed control.
• Heavy duty motor and speed reducer.
• Pick-up discharge with food approved rubber belt.

** Safety

• Magnetic interlock on guards over drive gears.
• High impact clear plastic over belt pinch point.
• Emergency stop button for quick and easy stopping.

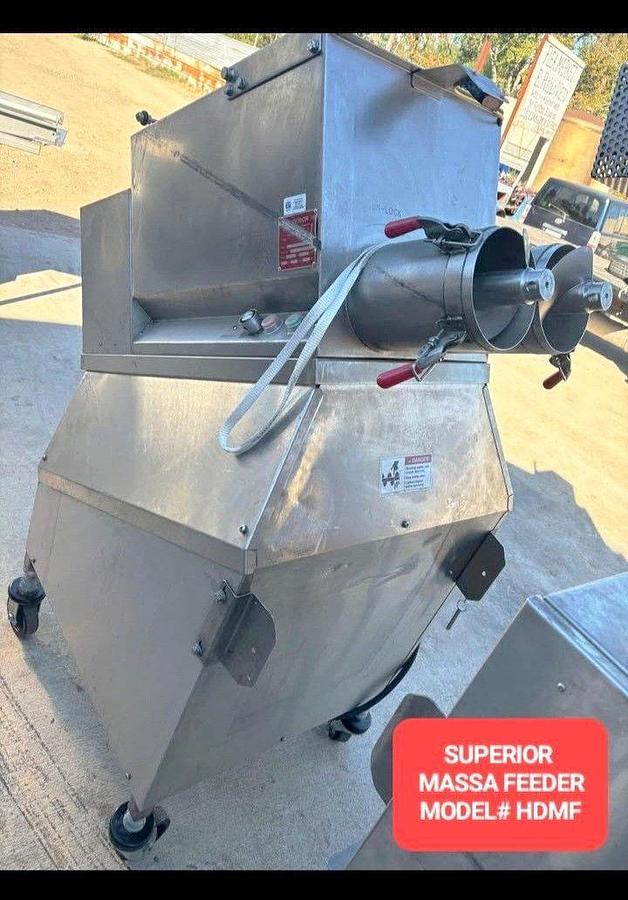

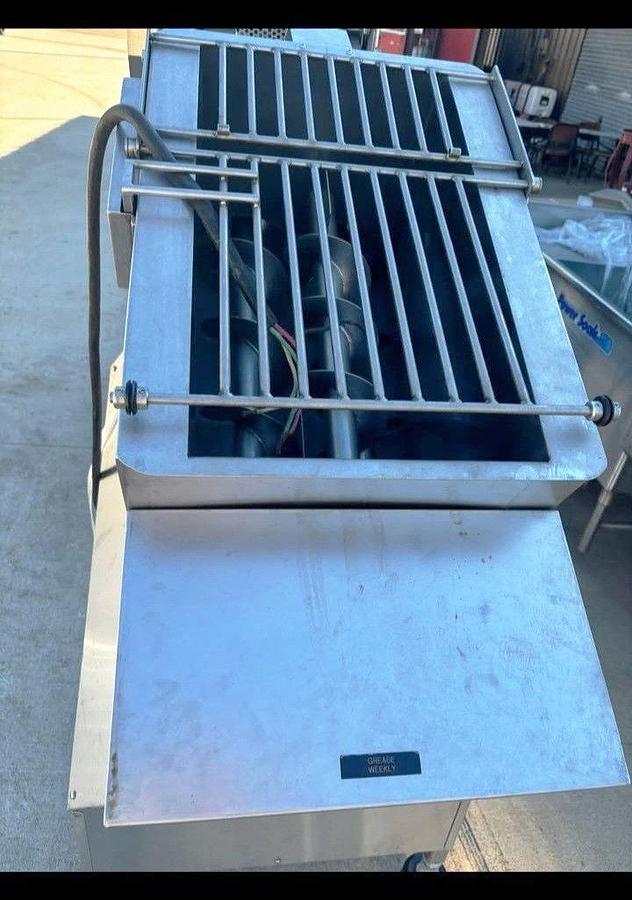

** HDMF6-1 Heavy Duty Masa Feeder Inclined

• All stainless-steel frame construction mounted on casters.
• Large capacity stainless steel loading hopper.
• Easily removable augers and nozzle for cleaning.
• Dual augers for higher extruding pressures and volume.
• Auger length 36” (approximate 15 lbs.).
• Short nozzle (approximate weight 9 lbs.).
• Lowest hopper height for loading approximate 48.”
• Splash guard surrounding bearings/gears/sprockets.
• Rear drain with side deflector for removal of excess water
• after cleaning.
• Heavy Duty #D50 chain drive. Easy access lubrication.
• Heat treated sprockets throughout.
• Easy to operate controls. Electronic variable speed control.
• Heavy duty motor and speed reducer.

** Safety

• Magnetic interlock on guards over drive sprockets.
• Heavy duty grill type guard with tamper resistant
• disconnect over hopper. (prevents operation with guard open).
• Guard opens from rear (approximate weight 5 lbs.).
• Emergency stop button for quick and easy stopping.
