Belshaw EZ Melt 24 Filtration System

Belshaw EZ Melt 24 Filtration System

Description

EZMELT24 SHORTENING MELTER-FILTER

Fast, effective filtration for 624 and 724CG/FG fryers. Melts, filters and tops up fryer shortening.


STANDARD FEATURES:


• Fits under compatible Belshaw Open Kettle fryers. Can be rolled in and out of position.

• Compatible with these Belshaw Open Kettle Fryers:

- 618L-624-634 (Open Kettle Electric)

- 718L-724-734 (Open Kettle Gas)

- Insider ventless donut system

- Donut Robot® fryers (except Mark II Gas, Mark II GP Gas)

• Heating element with factory set thermostat to 225°F/107°C

• Entire control panel and element tilts up for easy cleaning below.

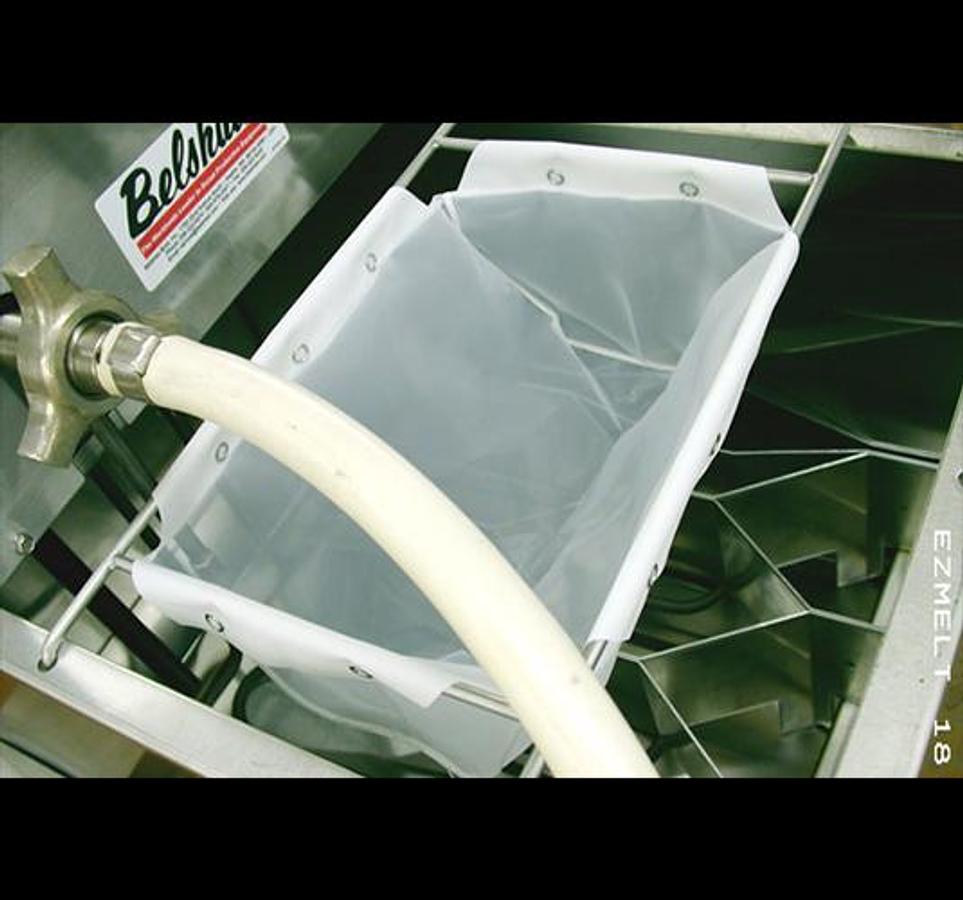

• Long-life synthetic filter screen. (Requires replacement once per year under normal conditions.)

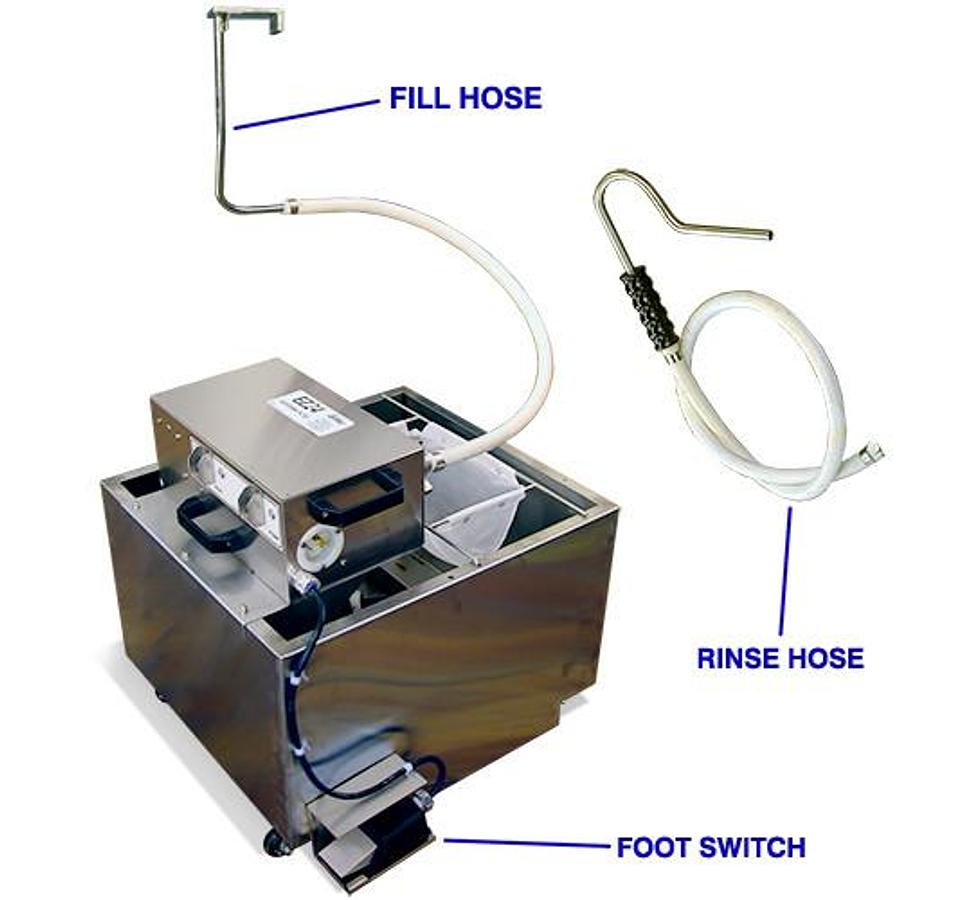

• 2 hoses:

- Refill Hose. Heat resistant hose with plated steel nozzle designed to attach to compatible Belshaw fryers (see hose compatibility table on next page).

- Rinse Hose. Heat resistant hose with hook end, designed for flushing debris while draining and filtering fryer.

• Heavy duty pump & motor for pumping shortening to the fryer on demand.

• Moisture repellent foot switch for activating pump.

• Integrated cube cutter for fast melting of solid shortening blocks up to 50 lbs (22.7 kg).

• High-temperature limit safety switch.

• Heavy duty stainless steel construction.

  • • Heavy duty swivel casters.


The EZMelt filtration system is the only filtration system recommended if you use Trans Fat-free shortening! Belshaw's SF models filters do not heat shortening and can clog inside the pump.


Use with

624, 724CG-FG

Compatibility

Worldwide

Certification

UL, CSA, NSF, CE


Specifications

ManufacturerBelshaw
ModelEZ Melt 24
ConditionNew
Stock NumberHBS11033
