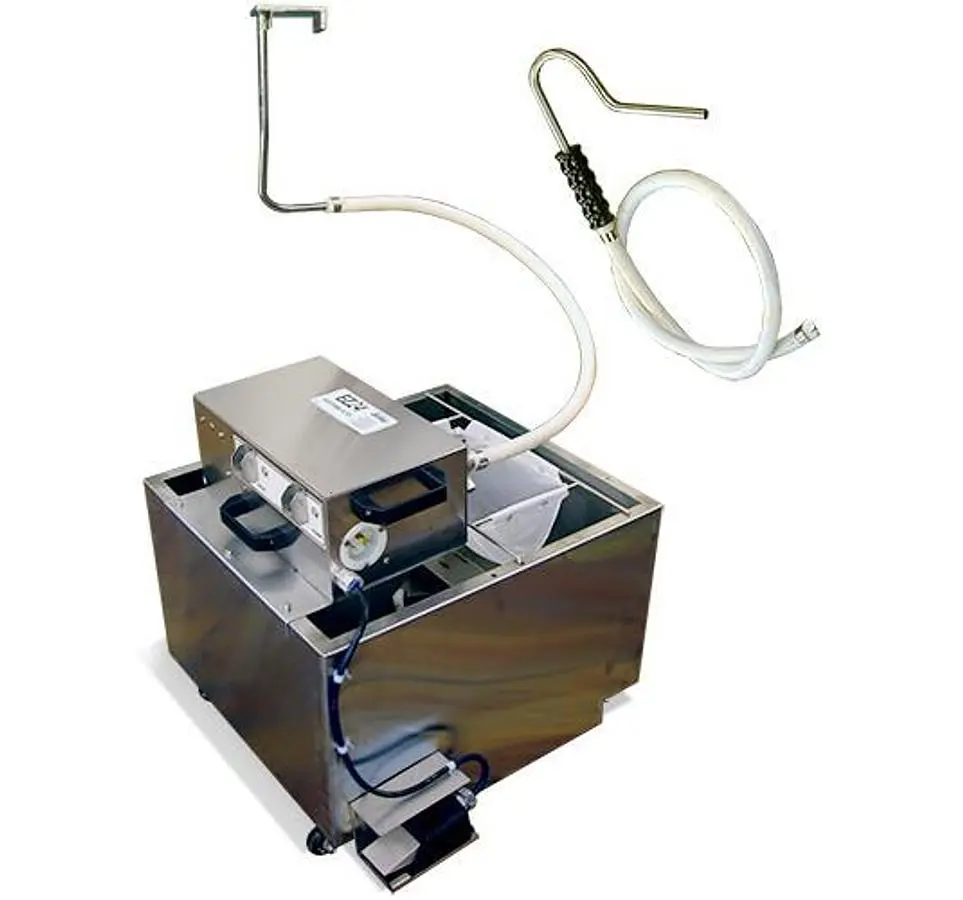

Belshaw EZ Melt 24 Filtration System

Description

STANDARD FEATURES:

• Fits under compatible Belshaw Open Kettle fryers. Can be rolled in and out of position.
• Compatible with these Belshaw Open Kettle Fryers:
- 618L-624-634 (Open Kettle Electric)
- 718L-724-734 (Open Kettle Gas)
- Insider ventless donut system
- Donut Robot® fryers (except Mark II Gas, Mark II GP Gas)
• Heating element with factory set thermostat to 225°F/107°C
• Entire control panel and element tilts up for easy cleaning below.

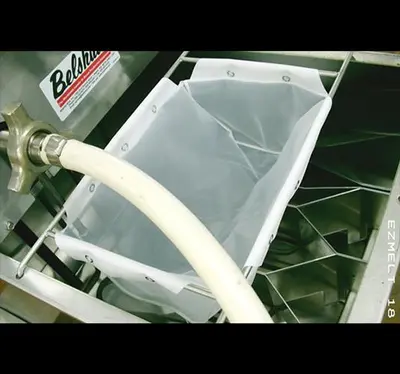

• Long-life synthetic filter screen. (Requires replacement once per year under normal conditions.)

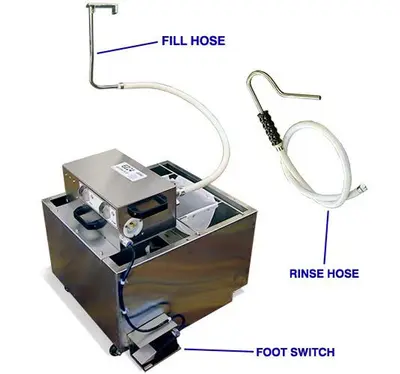

• 2 hoses:
- Refill Hose. Heat resistant hose with plated steel nozzle designed to attach to compatible Belshaw fryers (see hose compatibility table on next page).
- Rinse Hose. Heat resistant hose with hook end, designed for flushing debris while draining and filtering fryer.
• Heavy duty pump & motor for pumping shortening to the fryer on demand.
• Moisture repellent foot switch for activating pump.
• Integrated cube cutter for fast melting of solid shortening blocks up to 50 lbs (22.7 kg).
• High-temperature limit safety switch.
• Heavy duty stainless steel construction.
• Heavy duty swivel casters.

The EZMelt filtration system is the only filtration system recommended if you use Trans Fat-free shortening! Belshaw's SF models filters do not heat shortening and can clog inside the pump.

Use with
624, 724CG-FG
Compatibility
Worldwide
Certification
UL, CSA, NSF, CE
