Koenig I Rex Roll Line w/ Proofer, Stamper, Moulder, Seeder and Panner

Koenig I Rex Roll Line w/ Proofer, Stamper, Moulder, Seeder and Panner

Available quantity: 1

orCall 952-881-5895

Description

König 6/5/4 row rex with KGV Combiline incl. stamper, long moulder station, seeding station and automatic panner

Call For Pricing


Building year line 2007


for Hamburger and Hot Dog and stamped products


Capacity: 6 - rows, 50 strokes/min = 18.000 pieces/h


5 - rows, 50 strokes/min = 15.000 pieces/h


4 - rows, 40 strokes/min = 9.600 pieces/h


consisting of:

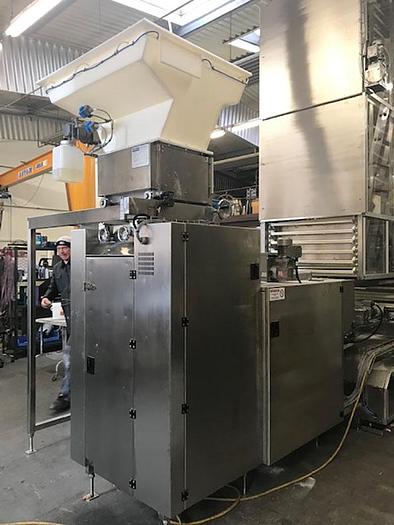

1) Large dough hopper TRÖ 240


capacity app. 240 liters dough


automatic oiling of inner surfaces


with plastic coating - repelling dough


3 x 400 V/ 50 Hz


1) Rex Industrie S-II 6/5/4, Modell A


machine capacity continuously adjustable from 10 to 50 strokes


per minute, execution also for filling every second swings at

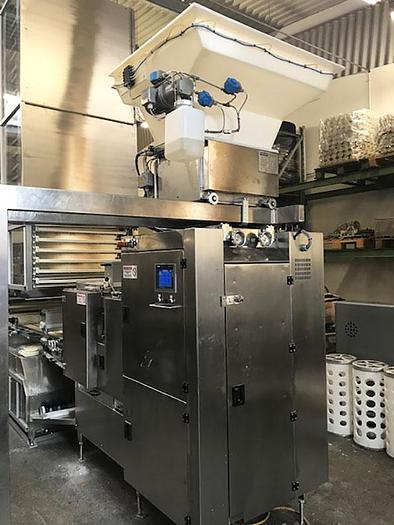

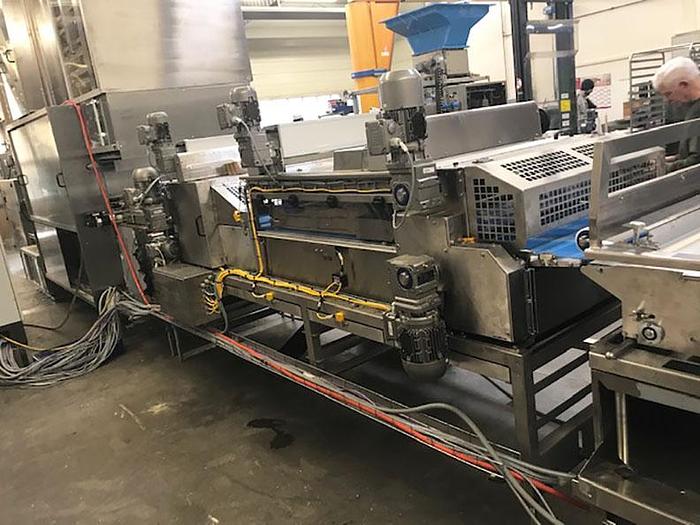

1) KGV Combi 2000


weight range size approx. 30 - 135 g/depending on dough


6/5/4/3-row operation


reduction of 1-, 2-, and 3 rows


hopper with infeed rollers and star wheels for portioning and safety light barrier


oiling unit for hopper with infeed rollers and dividing hopper


teflon dividing pistons with holes for higher weight accuracy

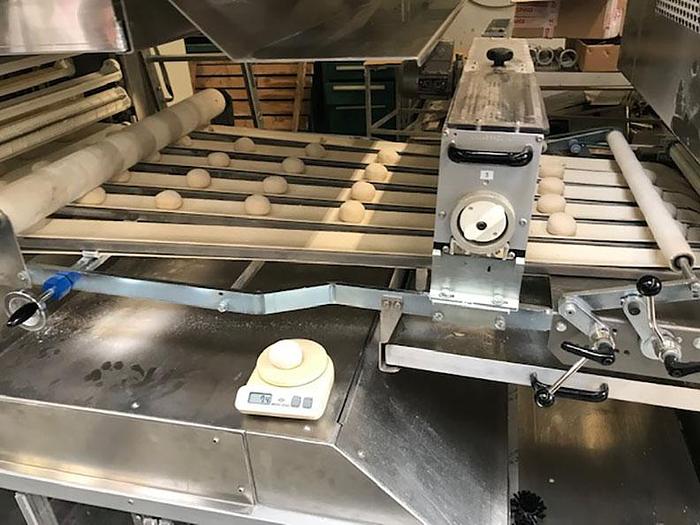

flour duster above spreading finger belt unit leading to the drum moulder


drum moulder with rounding belt and flour duster followed by chain


with glass fiber reinforced plastic (GRP filling ledges)

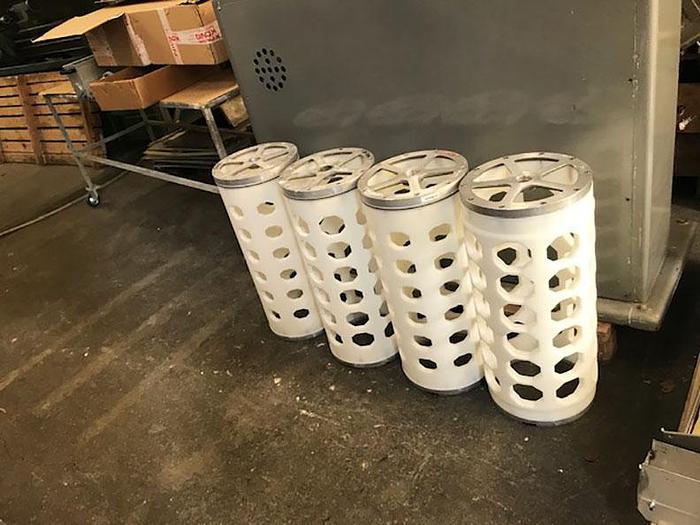

in total 5 moulding drums for covering the total weight range

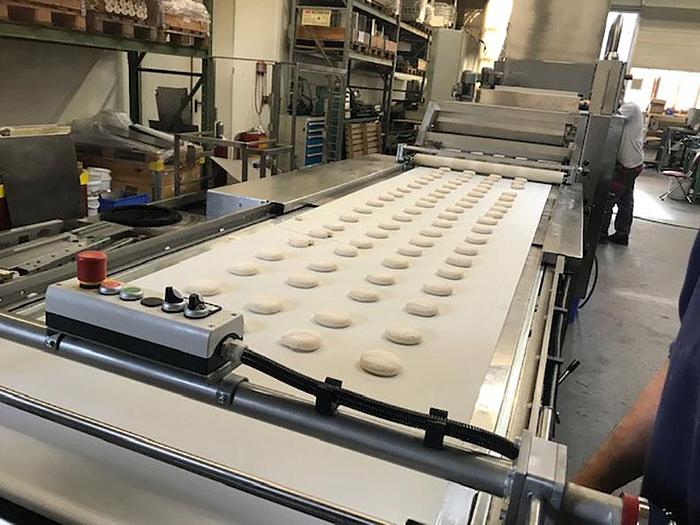

spreading finger belt with a nominal length of 1.600 mm


pressure roller mounted above spreading finger belt


fully automated machine operation via servo motors


Siemens Simatic S7-control and Siemens Touch Panel


stainless steel coverings with stainless steel feet and stainless steel


base plate 3 x 400 V/ 50 Hz

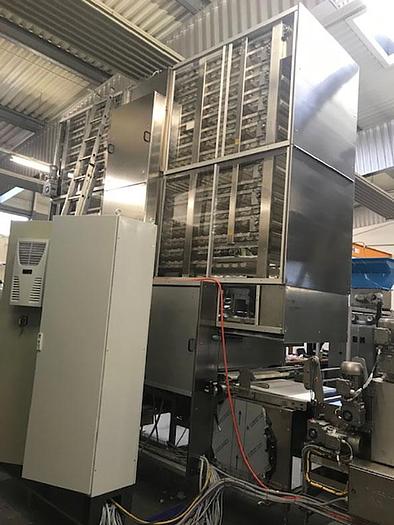

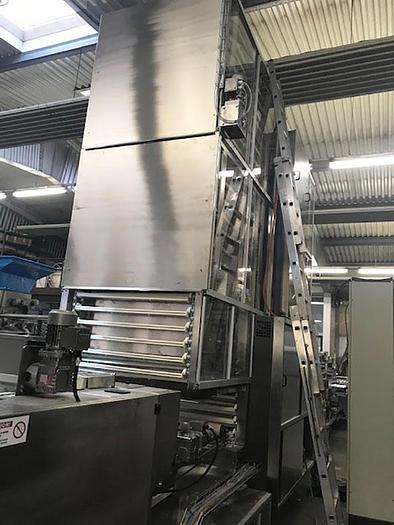

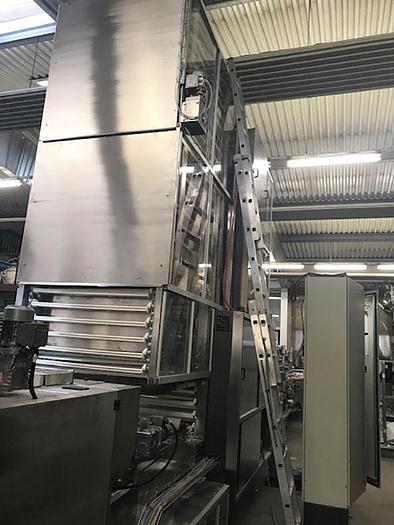

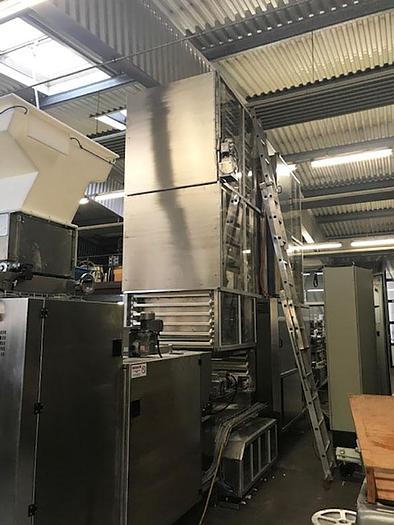

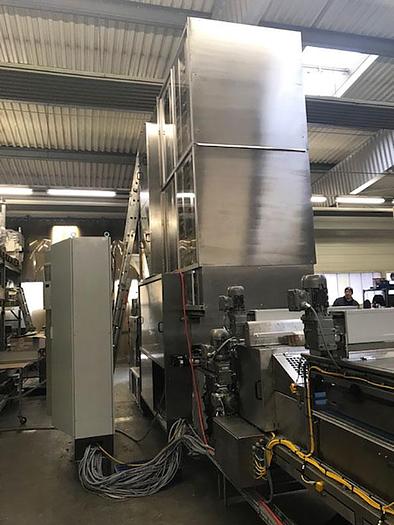

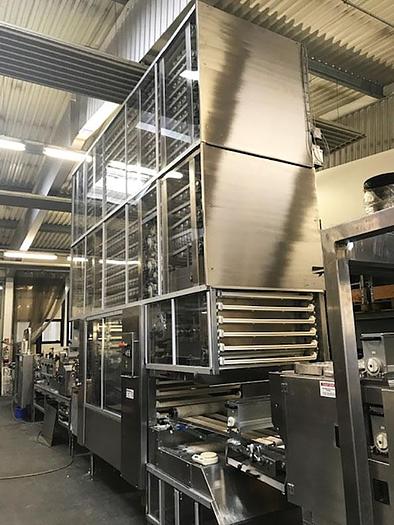

1) Pre-prover plant KGV Combi 40/2000/800-DD-K5/4p-VO-SCHN6/B-WDK-RR(800) MO (WB/ST)800-ABI 800(1000)


capacity continuously adjustable up to 40 strokes per minute for Cut rolls


(for other products also possible up to 50 strokes per minute)


also possible to fill second swing


working with 800 mm


in total 400 usable/fillable swings - prover chamber built for 750


usable/fillable swings


first swing outlet onto integrated long rolling unit RR 800 after approx.


120 fillable swings


first outlet can be disconnected


integrated long roller RR 800, working width 800 mm, with bottom belt,


Speed continuously adjustable and top belt, height adjustable, synchronized


re-feed for long rolled dough pieces into swings


another approx. 400 fillable swings leading to the cutting station for cut rolls


integrated cutting device SCHN6/B for cutting the dough pieces directly


in the swings with exchangeable "scalpel" knives and pressure board,


cutting station ca be disengaged


swing discharge, disconnect able, after cutting device onto intermediate belt


first disconnect able outlet onto REGINAMATIK stamping station with


own stamping cups, cross separation 120 mm


- pre-mounted flour duster for dough pieces


- revolver stamping head with the stamping tools K 5(Kaiser rolls)


transfer plate after Reginamatik stamping station, height adjustable (face


down or face up)


outlet conveyor leading to the end of the pre-prover


climatization with heating and wetting controlled via thermostat and hygrostat


sterilization for empty swings via UV cold cathode tubes: stronger than normal


drying zone for empty swings with heating and cross fan


prover in stainless steel execution

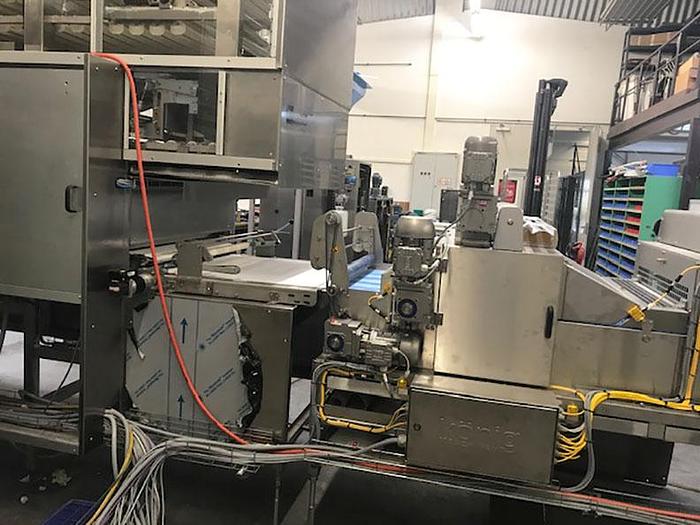

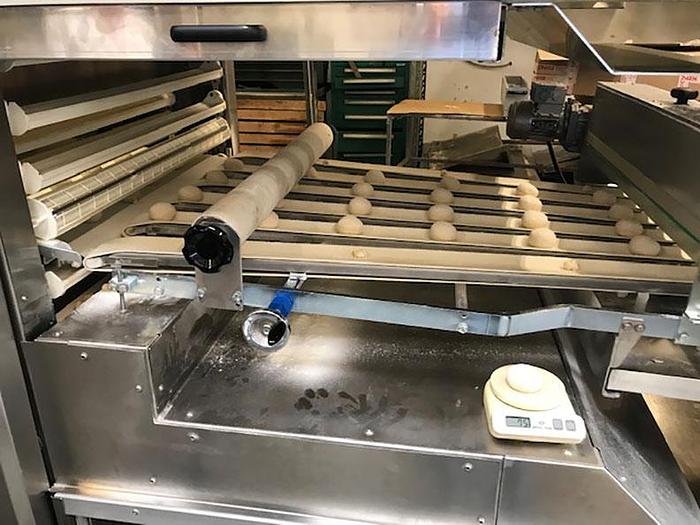

1) Forming station WDK-RR 800, building year 2009


nominal width 800 mm


double calibration roller


curling chain belt ( 4 row execution)


driven bottom belt RR


driven top belt RR, speed height adjustable, direction of


rotation reversible


flower duster above top belt


timing roller for row correction with insertable transfer roller


incl. 1 set of guides (4 row execution)


incl. short intermediate belt for speed reduction


stainless steel casing, stainless screw feet


3 x 400 V/ 50 Hz + N + PE


1) Seeder plant MO (WB/ ST) 800, building year 2009


three belt execution


working width 800 mm


spraying unit for first grid belt for additional wetting from top


second grid belt with mounted strewing device


second grid belt is height adjustable to turn the dough pieces to the


third grid belt


exchangeable strewing boxes:


- 1 x strewing box for fine strewing goods (sesame, poppy)


1 pcs. plastic belt manually exchangeable against grid belt -


whole belt is mounted on wheels


with 2 pcs. vibration chutes for discharging the excess strewing material


automatic refilling of excess surplus strewing goods to the 1 strewing


boxes by means of oscillating chute and vacuum unit


wire belt module exchangeable with a conveyor belt - also on a mobile frame


easy cleaning due to optimized accessibility of all parts which are in touch with dough


completely made of stainless steel


3 x 400V/ 50 Hz

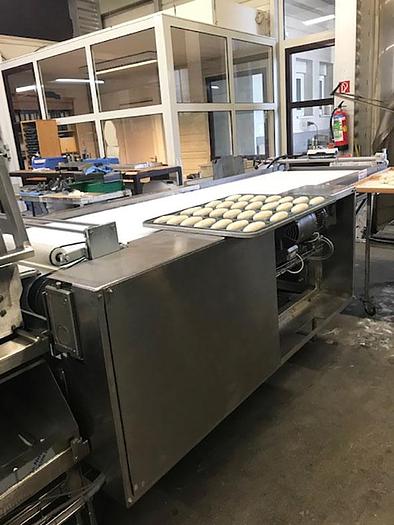

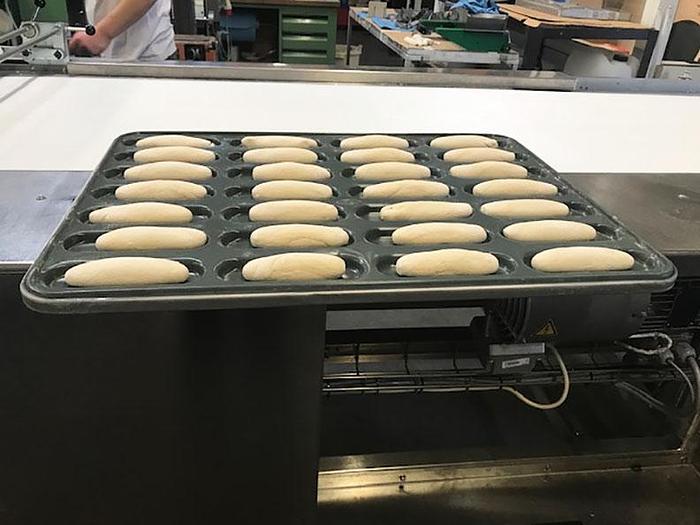

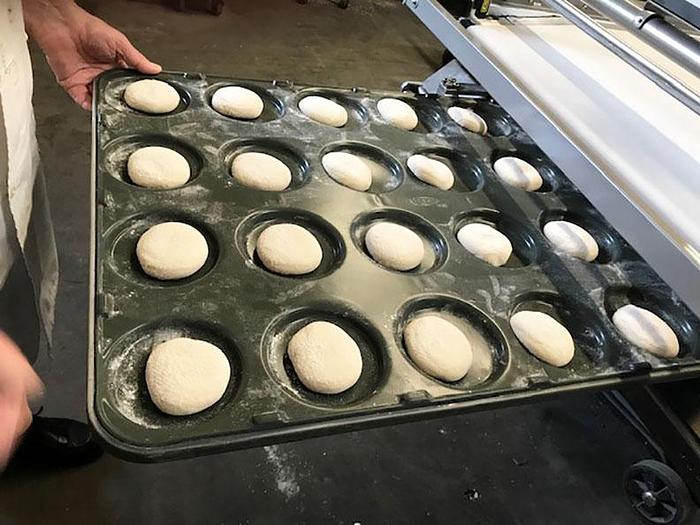

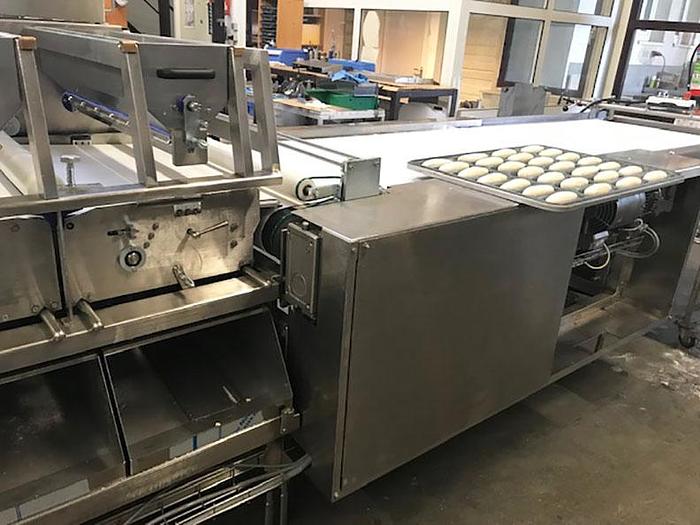

1) Retracting unit type Industrie ABI 800 / (1000)


working width 800 mm


retracting length adjustable up to max. 1.000 mm


step lengthwise continuously adjustable, batchwise setting possible


stainless steel coverings



Specifications

ManufacturerKoenig
Year2007
ConditionRefurbished
