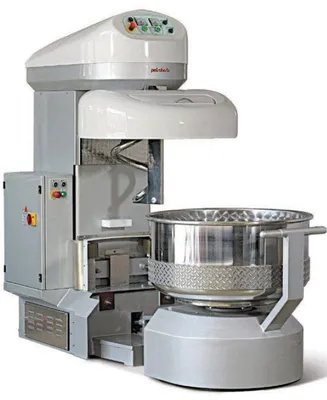

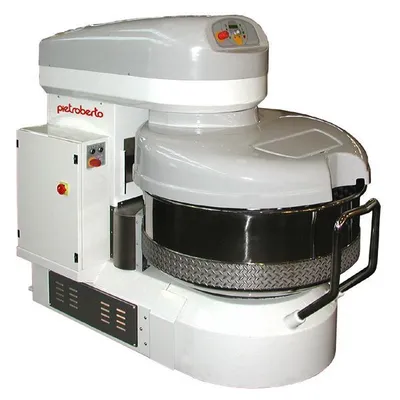

Pietro Berto Easy 160 E Removable Bowl Spiral Mixer

Description

PietroBerto Easy 160 E Removable Bowl Mixer, Voltage: 220 / 3 ph

Features:

* Pedestal, head and trolley painted steel with epoxy powder.
* Mobile head with powered lifting device at the end of mixing cycle to remove the trolley.

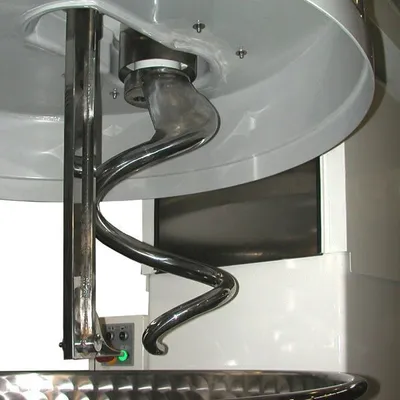

* AISI 304 stainless steel bowl and breaking bar, AISI 431 stainless steel spiral tool.
* Tool driving system via belts, bowl driving system via belts with reduction gear and tired wheels, driving system via belts to activate the head ascent-descent.
* Three independent motors (IP54 protection class) for spiral tool, for bowl and for lifting head. Eventual fourth motor to activate the hydraulic hooking device for the bowl-trolley (optional).
* ABS plastic safety guard with a front door for checking mixing and adding ingredients and to reduce flour dust.

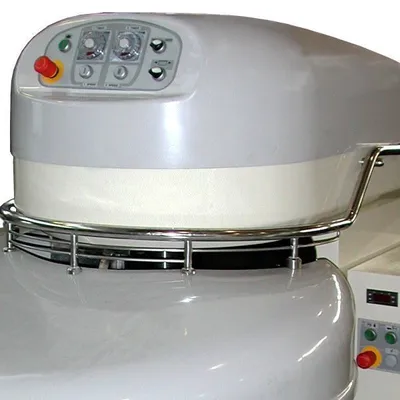

* Multifunction control panel:
* Membrane keyboard protected by a pressure resistant and abrasion proof polycarbonate surface;
* Two-line display up to 19 alphanumeric characters;
* Ergonomic handle allowing an easy setting of data and letters and the mixing phases programming;
* Dough temperature display and control;
* Memory up to 50 recipes names;
* For each recipe it is possible to store in memory up to 15 of the following phases:
- 1st speed / bowl anticlockwise rotation;
- 1st speed / bowl clockwise rotation;
- 2nd speed / bowl clockwise rotation;
- Automatic pause;
- Additional ingredients;
- Machine status diagnostic and alarms display;
- Device for PC connection (optional);
* Head movements control panel in lateral position.
* IP55 electric protection degree (against water sprays, dust and flour infiltrations)
* Standing feet to stabilize the machine.

TECHNICAL FEATURES:

** Power: 8.2 kw
** Voltage: 220 / 3 ph / 60 hz
** Weight: 980 kg / 2160 lbs
** Dough capacity: 160 kg / 352 lbs
** Internal bowl diameter: 900 mm / 35.5"
** Tool speed at speed 1st-2nd: 101-202 rpm

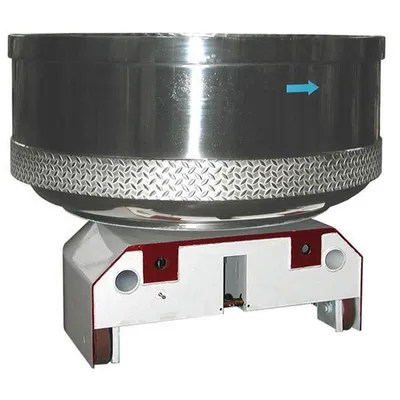

** Bowl-trolley weight: 227 kg / 500 lbs
** Bowl volume: 261 l / 575 lbs
** Bowl dept: 420 mm / 16.5"
** Bowl speed: 12 rpm
