Konig I Rex Roll Line 6/5/4 w/ Proofer, Stamper, Moulder, Seeder and Panner

Description

König 6/5/4 row I Rex with KGV Combiline

Includes:

• Rex Industrie S-II 6/5/4, Modell A Divider Rounder
• Overhead Proofing
• Stamping / Slitting Station
• Long Moulding Station
• Seeding Station
• Reciprocating Panner

DOM: 2007
Production of Rounded, Long Moulded, Stamped and Slitted Products

Capacity:
6 - rows, 50 strokes/min = 18.000 pieces/h
5 - rows, 50 strokes/min = 15.000 pieces/h
4 - rows, 40 strokes/min = 9.600 pieces/h

1) Large dough hopper TRÖ 240

• Capacity app. 240 liters Dough
• Automatic Oiling of Inner Surfaces
• Plastic Coating - Repelling Dough
• Safety and Feed Switches
• Mounted on Tracking Guides for Cleaning
• Voltage: 480 V/ 3 Ph / 60 Hz

1) Rex Industrie S-II 6/5/4, Modell A
• Capacity Continuously Adjustable from 10 to 50 Strokesper Minute, Execution also for Filling Every Other Proofer Tray in KGV Combi 2000
• Weight Range approx. 30 - 135 g ( 1 to 4.75 oz) / Depending on Dough
• 6/5/4/3 - Row Operation Reduction of 1-, 2-, and 3 Rows
• Hopper with Infeed Rollers and Star Wheels for Portioning and Safety Light Barrier
• Oiling Unit for Hopper with Infeed Rollers and Dividing Hopper
• Teflon Dividing Pistons with Holes for Higher Weight Accuracy
• Flour Duster above Spreading Finger Belts Leading to the Drum Rounder
• Drum Moulder with Rounding Belt and Flour Duster Followed by Chain
• Fiberglass Reinforced Plastic (GRP Filling Ledges)

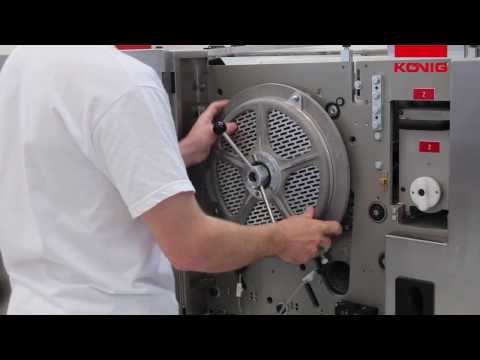

• 5 - Rounding drums to Covering the Total Weight Range
• Spreading Finger Belts with a Nominal Length of 1.600 mm / 62 in
• Pressure Roller Mounted Above Spreading Finger Belts
• Fully Automated Machine Operation via Servo Motors
• Siemens Simatic S7- Control and Siemens Touch Panel
• All Stainless Steel Execution
• Voltage: 480 V/ 3 Ph / 60 Hz

1) Pre- Prover Plant KGV Combi 40/2000/800-DD-K5/4p-VO-SCHN6/B-WDK-RR(800) MO (WB/ST)800-ABI 800(1000)

• Capacity Continuously Adjustable up to 40 Strokes per Minute for Cut rolls (for other Products also Possible up to 50 Strokes per Minute)
• Also Possible to Fill Every Other Tray
• Working Width: 800 mm / 31.5 in
• 400 Usable / Fillable Trays - Prover Chamber Built for 750 Usable / Fillable Trays
• First Tray Outlet onto Integrated Long Rolling Unit RR 800 After Approx.120 Fillable swings
• First Outlet can be Disconnected
• Integrated Long Roller RR 800, Working Width 800 mm / 31.5 in, with Bottom Belt,
• Speed Continuously Adjustable and Top Belt, Height Adjustable, Synchronized for Long Rolled Dough Pieces into Trays
• Approx. Additional 400 Fillable Trays Leading to the Cutting Station for Cut Rolls
• Integrated Cutting Device SCHN6/B for Cutting the Dough Pieces in the Trays with Exchangeable "Scalpel" Knives and Pressure Board, Cutting Station ca be Disengaged
• Tray Discharge, Disconnectable, after Cutting Device onto Intermediate Belt
• First Disconnectable Outlet onto REGINAMATIK Stamping Station with Stamping Cups, cross separation 120 mm
o Pre-mounted Flour Duster for Dough Pieces
o Revolver Stamping Head with the Stamping Tools K 5 (Kaiser Rolls)
• Transfer Plate after REGINAMATIK Stamping Station, Height Adjustable (Face Down or Face up)
• Outlet Conveyor Leading to the end of the Pre-prover
• Climatization with Heat and Humidity Controlled via Thermostat and Hygrostat
• Sterilization for Empty Trays via UV Cold Cathode Tubes: Stronger than Normal Drying Zone for Empty Trays with Heating and Cross Fan
• All Stainless Steel Execution
• Voltage: 480 V/ 3 Ph / 60 Hz

1) Forming Station WDK-RR 800, Nominal Width 800 mm / 31.5 in

• Double Calibration Roller
• Curling Chain Belt ( 4 Row Execution)
• Driven Bottom Belt RR
• Driven Top Belt RR, Speed Height Adjustable, Direction of Rotation Reversible
• Flower Duster Above Top Belt
• Timing Roller for Row Correction with Insertable Transfer Roller
• Included 1 - set of Guides (4 Row Execution)
• Included Short Intermediate Belt for Speed Reduction
• All Stainless Steel Execution
• Voltage: 480 V/ 3 Ph / 60 Hz

1) Seeder plant MO (WB/ ST) 800 mm / 31.5 in

• Three Belt Execution
• Working Width 800 mm / 31.5 in
• Spraying Unit for First Grid Belt for Additional Wetting from Top
• Second, Grid Belt with Mounted Seeding Device
• Second Grid Belt is Height Adjustable to turn the Dough Pieces to the Third Grid Belt
• Exchangeable Seeding Boxes:
o 1 x Seeding Box for Fine Seeding (Sesame, Poppy)
• 1 pcs. Plastic Belt Manually Exchangeable Against Grid Belt Whole Belt is Mounted on Wheels
• 2 pcs. Vibration Chutes for Discharging the Excess Seeding Material
• Automatic Refilling of Excess Surplus Seeding to the 1 Seeding Boxes by means of Oscillating Chute and Vacuum Unit
• Wire Belt Module Exchangeable with a Conveyor Belt - also on a Mobile Frame
• Easy Cleaning due to Optimized Accessibility of all Parts which are in touch with Dough completely made of Stainless Steel
• Voltage: 480 V/ 3 Ph / 60 Hz

1) Retracting unit type Industrie ABI 800 / (1000) Working Width 800 mm / 31.5 in

• Retracting Length Adjustable up to Max. 1,000 mm / 39 in
• Step Lengthwise Continuously Adjustable, Batchwise Setting Possible
• All Stainless Steel Execution
