Cayuga Double Curved High Capacity Full Service Display Case

Description

Cayuga Double Curved Front Glass w/ Vertical Back
BFS - Bakery Full Service Display
REFRIGERATED

TECHNICAL SPECS (REMOTE REFRIGERATION)

MODEL LENGTH VOLTS AMPS PLUG BUTH SUCTION
BFSV-38DC-M 38 ¼” 115 1.9 NEMA 5-15P 2440 25F
BFSV-48DC-M 47 7/8” 115 2.1 NEMA 5-15P 2920 25F
BFSV-57DC-M 57 ⅜” 115 2.8 NEMA 5-15P 3370 25F
BFSV-76DC-M 76 ½” 115 3.4 NEMA 5-15P 4320 25F
BFSV-96DC-M 95 ⅝” 115 3.9 NEMA 5-15P 5320 25F

TECHNICAL SPECS FOR SELF-CONTAINED REFRIGERATION AVAILABLE UPON REQUEST

FEATURES:

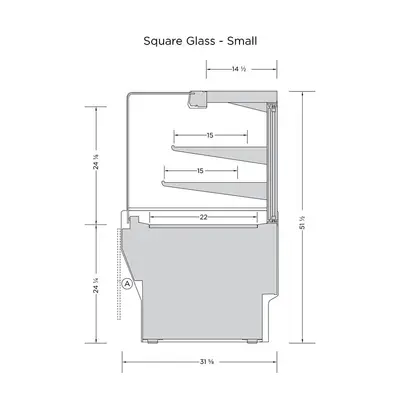

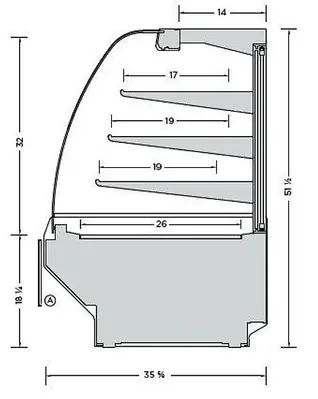

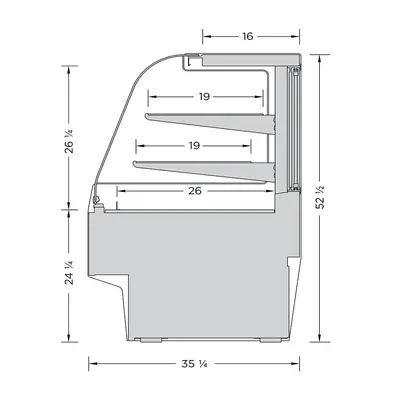

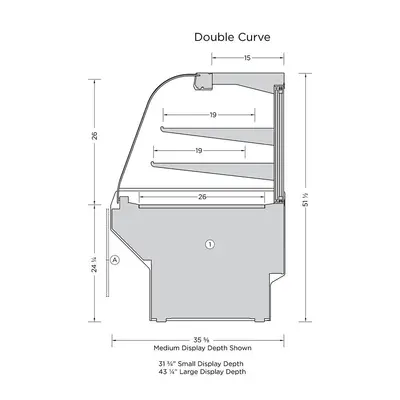

• Three display depths available, refer to the dimensioned illustration.
• Remote or self-contained refrigeration system options.
• Proprietary Cold & Slow™ refrigeration design: high volume low velocity cooling.
• A non-refrigerated display option is available.

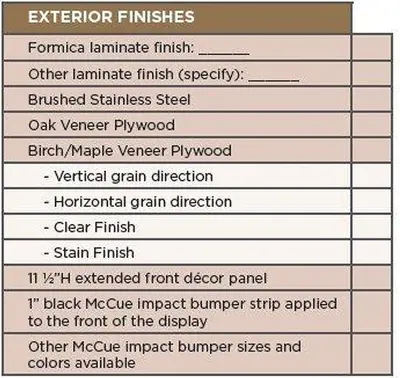

• Many exterior finish options, powdercoat paint, brushed stainless steel, laminates, and natural wood finishes.
• Three interior finish options, textured powdercoat black, white or brushed stainless steel.
• LED light strips are mounted on the top ledge of the display area and under each shelf level.
• The LED lighting is available in various light intensities/spectrums.
• 2-19” adjustable tempered glass shelves.
• Hydraulic lift-up front glass hardware.
• Rear sliding doors with sealed thermal glass.
• Front base décor panel options provide a more customized look.

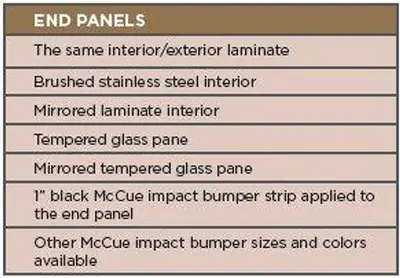

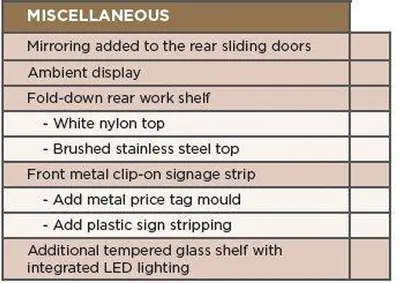

• Many display options offered. Refer to the options schedules on the next page.
• Engineered for serviceability and flexibility.
• Removeable base deck panels for easy cleaning and service.
• ETL electrical certification and NSF 7 standards.

STANDARD FEATURES:

• Remote refrigeration.

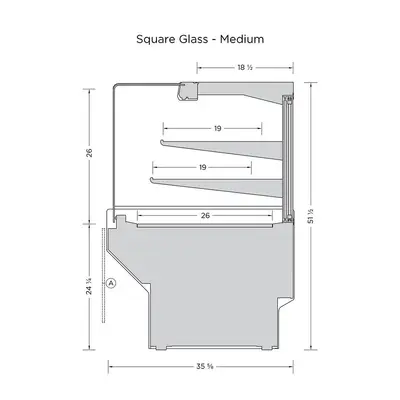

• Medium display depth 35 5/8”.
• Three interior finish options, textured powdercoat black, white or brushed stainless steel.
• Black or white painted front exterior metal décor pan with a 4” vertical flat panel.
• LED light strips are mounted on the top ledge of the display area and under each shelf level.
• 2-19” adjustable tempered glass shelves.
• Hydraulic lift-up front glass hardware.
• Double Curve front glass.

ADDITIONAL FEATURES:

• Designed to maintain the critical temperature of the products within the display at a range of 38-41°F (3-5°C) with an ambient atmosphere of 75°F (24°C)/55% humidity. Designed for holding pre-chilled product only.
• 1-year parts and labor warranty.
