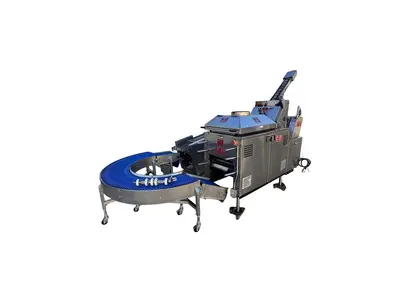

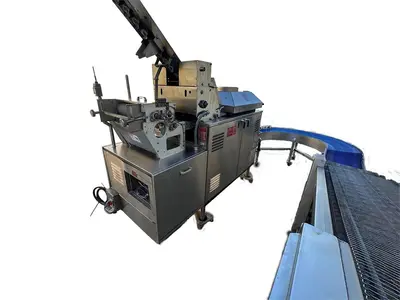

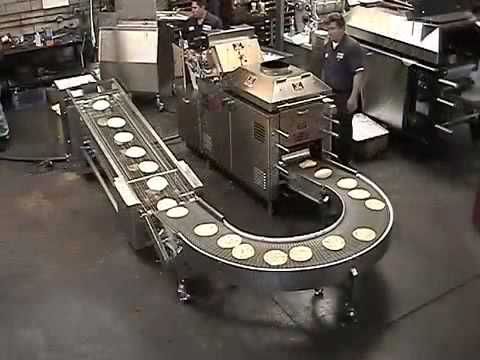

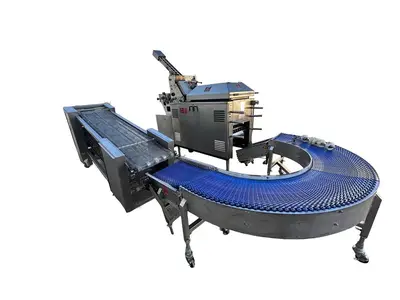

Superior Tortilla System

Description

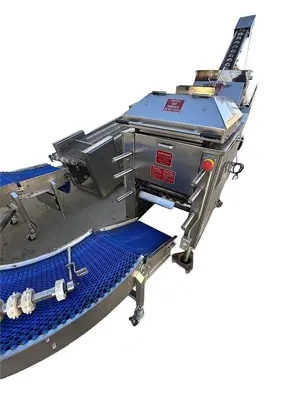

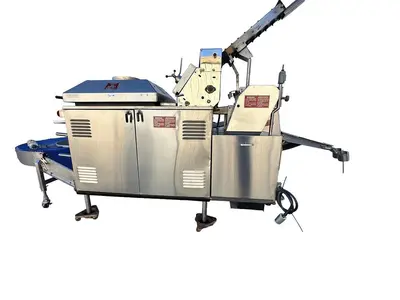

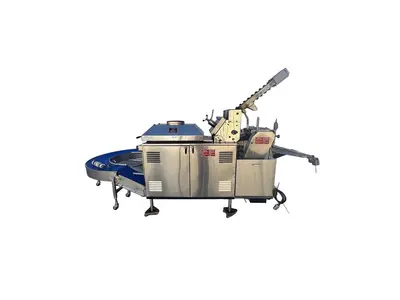

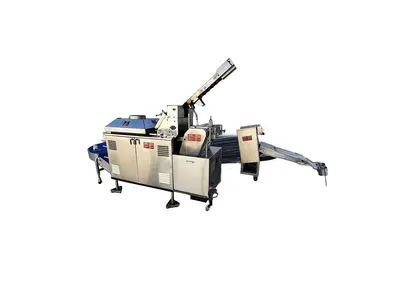

1) Superior Md. #2CFO 54 42 4P Double Corn Tortilla w/ on board Super Flour Press Baking Oven / Over Under Conveyor Baking chamber: 54” long.
Production capacity: “Corn Tortilla Capacity 100-350 dz./hr.” (Based on a 6” diameter / 10 oz. per dozen table tortilla.

(All production rates are dependent on dough moisture rates, dough texture characteristics and size and weight).

Production capacity:

Wheat Flour Tortilla Capacity
(Casero Type) / (Home Made Type)
Tortilla Press: 16” x 17½“ super press platens.
(6” dia.) 180 dozen per hour.
(7-10” dia.) 90 dozen per hour.
(11-13” dia.) 30 dozen per hour.

**Corn tortillas sheeter head 4½” x 15” rollers.

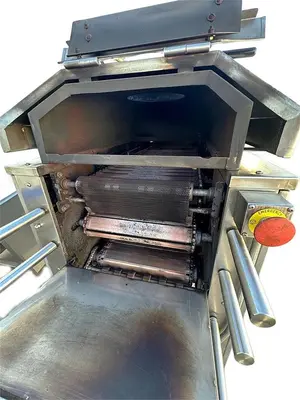

Baking bands: 3 ea. Slat type.
Pre-mix combustion system.
Ribbon type burners.
Electronic variable speed control.
High temperature graphite main shaft bearings.
Spring tensioned baking bands.
2” x 15½” curved baking bands.
Oversized oven roller chain on baking bands.
Heat-treated sprockets throughout.
Easy access lubrication. Stainless steel trim.
Independent single lever gas adjustment.

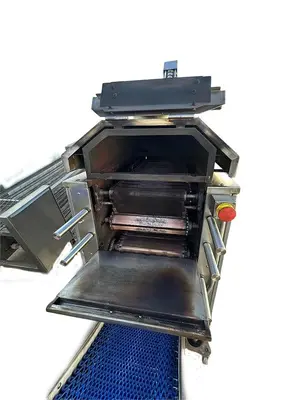

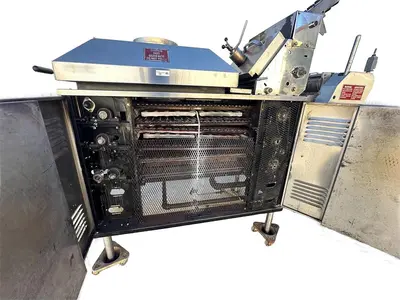

Stainless steel double insulated hinged oven door panels.
Double hinged hood for easy application of Teflon spray.

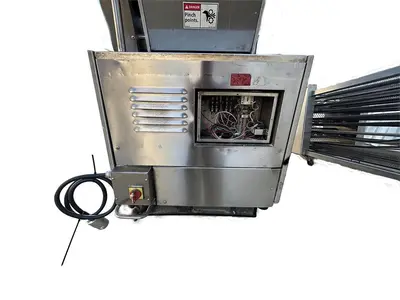

Easy to understand control panel.

** Press:
Teflon coated press plates.
Dual digital temp controls.
High efficiency cartridge heaters.
Single knob press thickness control.

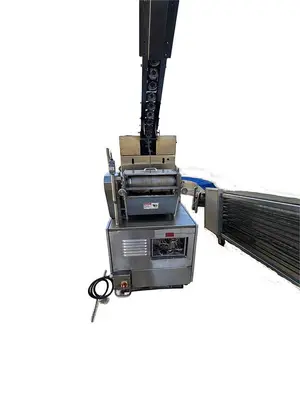

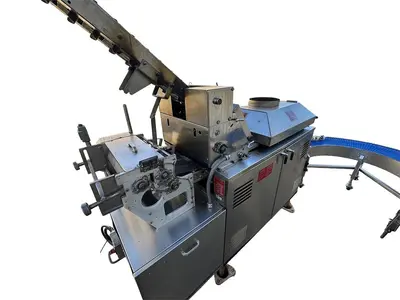

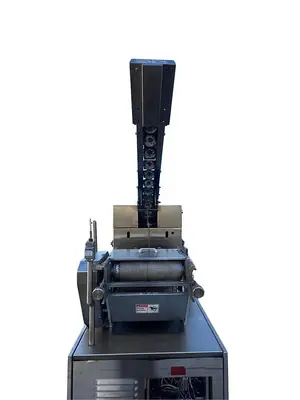

** Sheeter
Corrosion resistant heavy-duty bearings.
Water escape feature on bearings.
Anodized aluminum side frames.
Spring loaded rocker arm cutting mold supports.

** Safety
Gas flame supervision.
Totally enclosed fixed gear guard on sheeter.
Magnetic interlocks on sheeter hopper (prevents sheeter
from operating with hopper removed).
Magnetic interlock on table panel (prevents access to
motor compartment while machine is running).
Magnetic interlock on cutting mold guard.
Emergency stop wand for quick and easy stopping.
Emergency stop button at front of oven.
“ETL” listed to NSF/ ANSI Standard 4

Heavy Duty #D50 chain drive. Easy access lubrication.
Heat treated sprockets throughout. Easy to operate controls.

Electronic variable speed control. Heavy duty motor and
speed reducer.

“ETL” listed to NSF/ANSI Standard 8.
Proudly Made in the “USA”.
Specs
230 V., 3 phase, 60 amp.

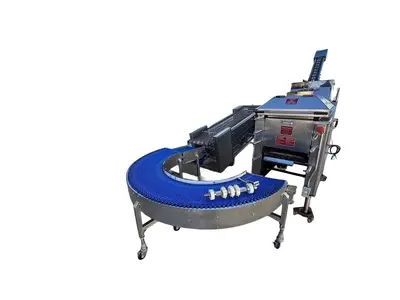

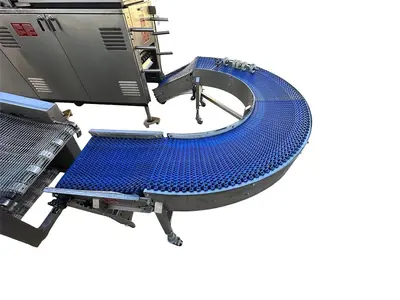

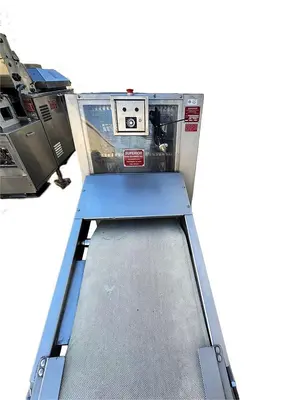

** Md. #180-15 U Turn Conveyor
Heavy-duty stainless-steel frame mounted on casters.
Heavy-duty 15”-wide food approved belting.
Long wearing low friction belt supports.
Heat-treated sprockets throughout.
Easy access lubrication.
Easy to operated control panel.
Electronic variable speed control.
Heavy-duty motor and speed reducer.
Safety
Emergency stop button for quick and easy stopping.
Proudly Made in the “USA”.
Specs
208 V / 1 phase / 5.9 amp.

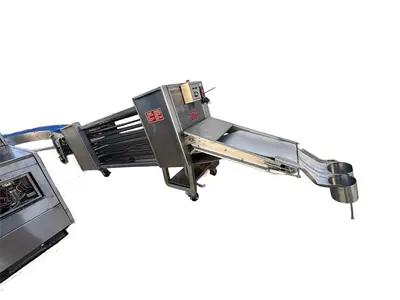

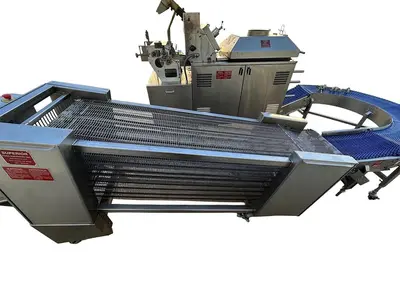

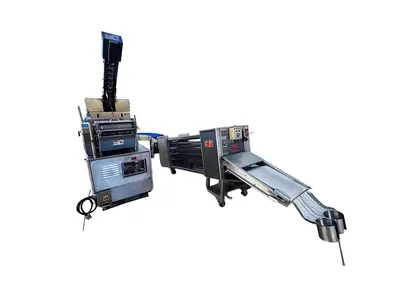

** Md. #5186 INEQ Cooling Conveyor
5 Cooling belts with 8 ft. centers. To have pickup tail
extending into the corn superior double oven.
Heavy-duty stainless-steel frame mounted on casters.
Heavy-duty 18” wide stainless-steel equalized
balance weave belting.
Long wearing low friction belt support.
Stainless steel low friction solid product sliding chutes.
UHMW positive tracking belt sprockets.
Heat treated sprockets throughout.
Easy access lubrication. Easy to operate control panel.
Electronic variable speed control.
Heavy duty motor and speed reducer.
Pick-up discharge with food approved rubber belt.

** Safety
Magnetic interlock on guards over drive gears.
High impact clear plastic over belt pinch point.
Emergency stop button for quick and easy stopping.
