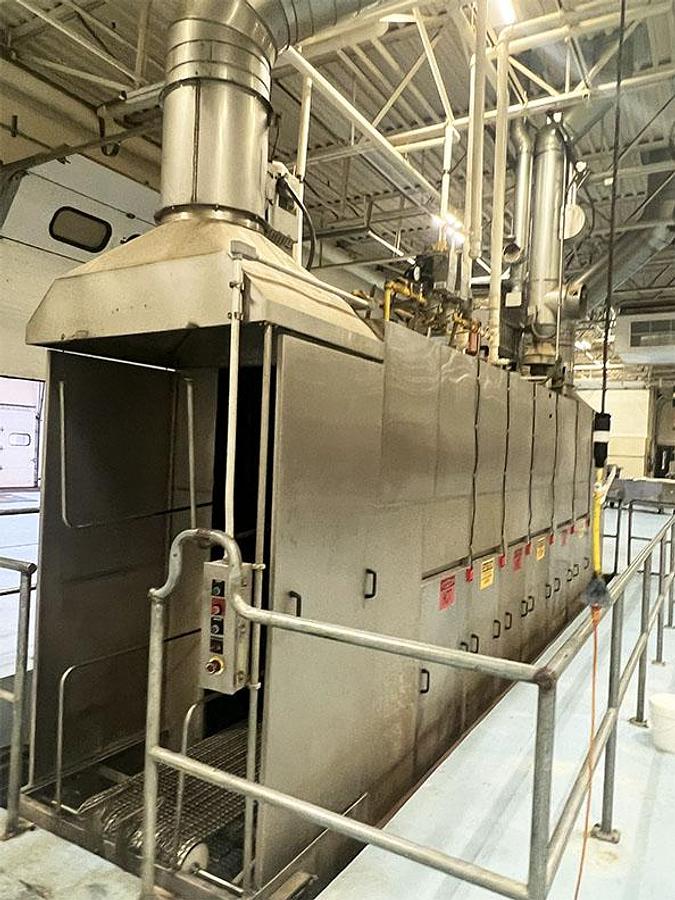

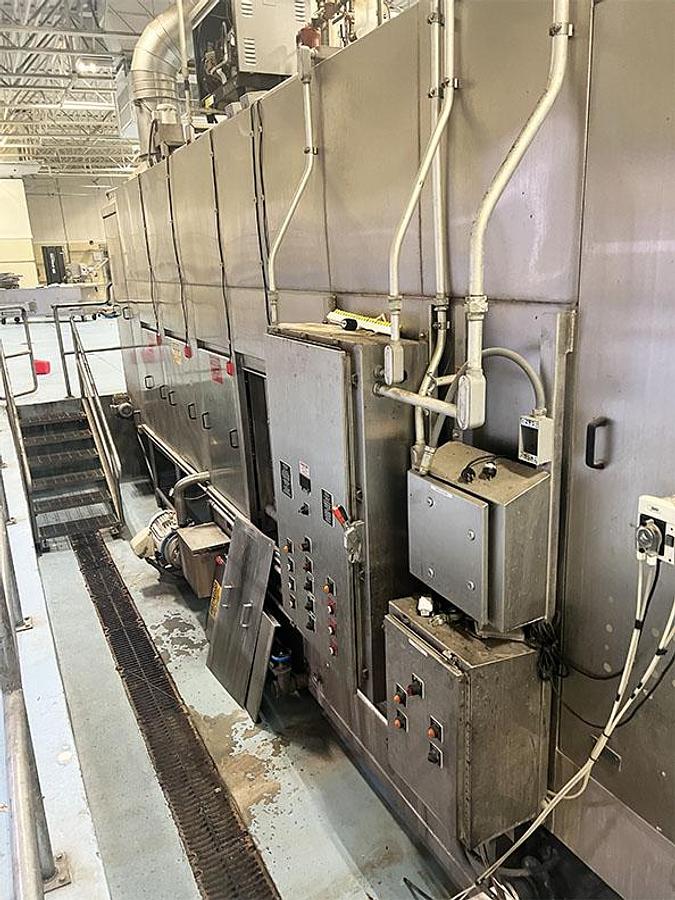

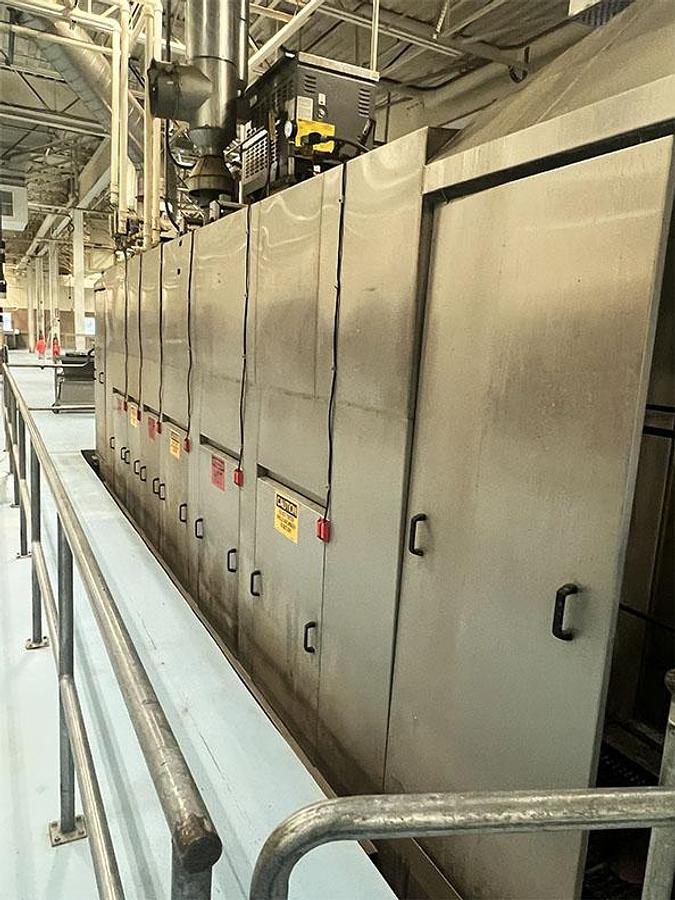

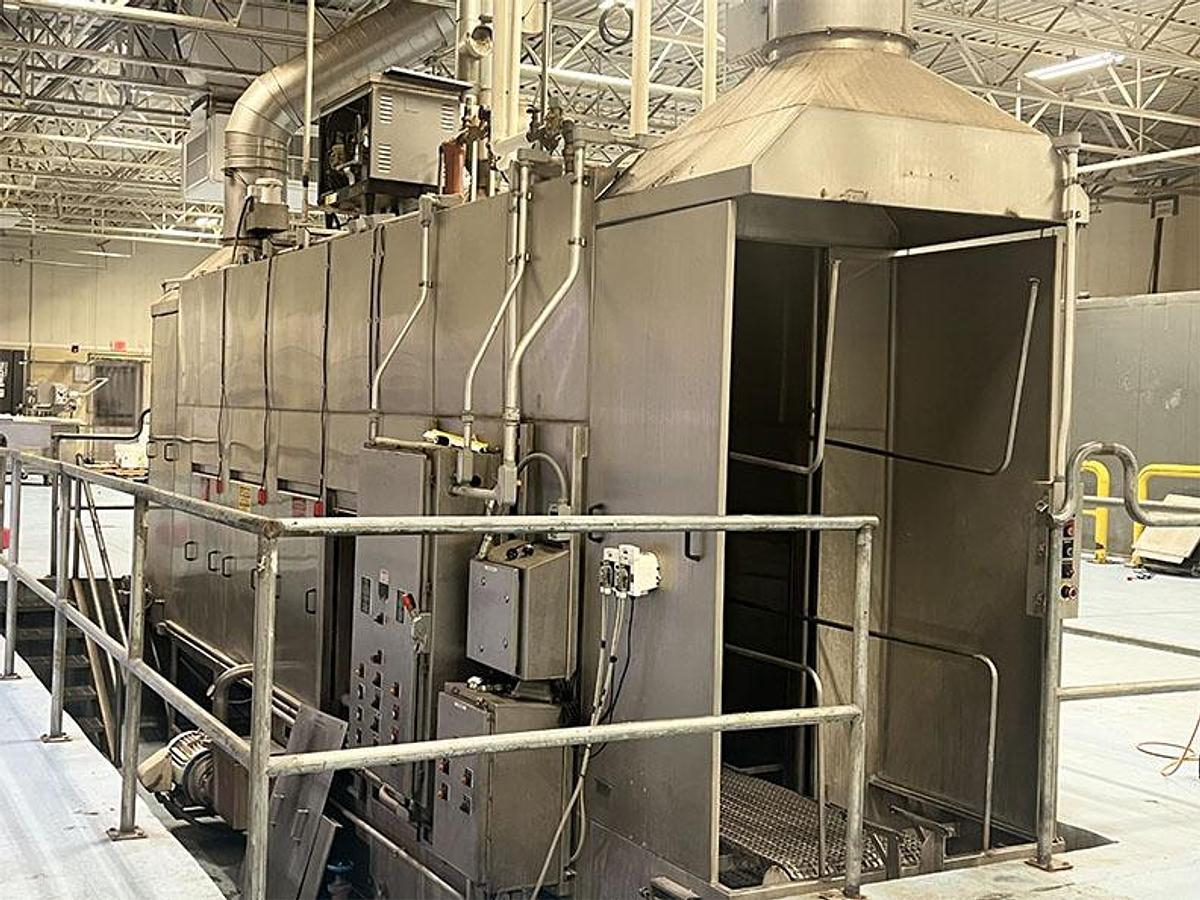

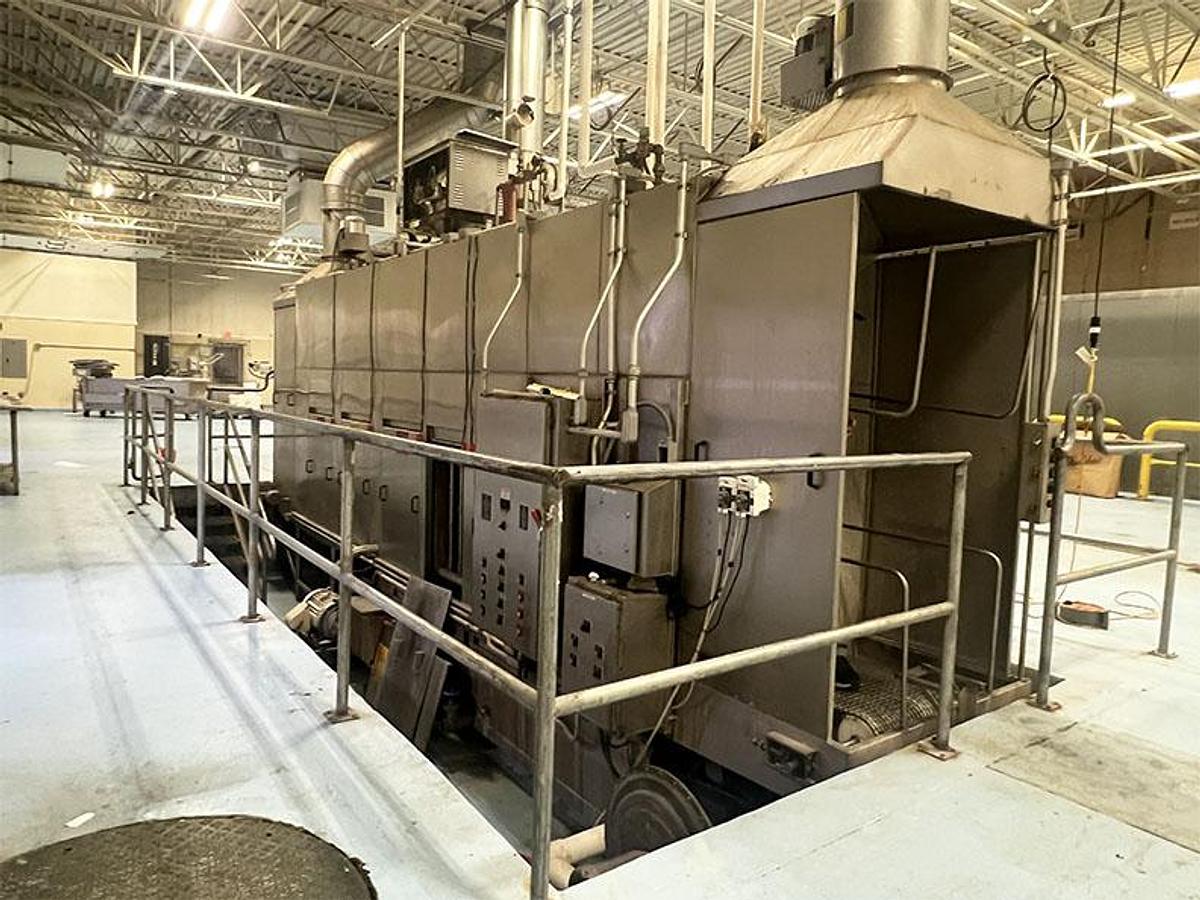

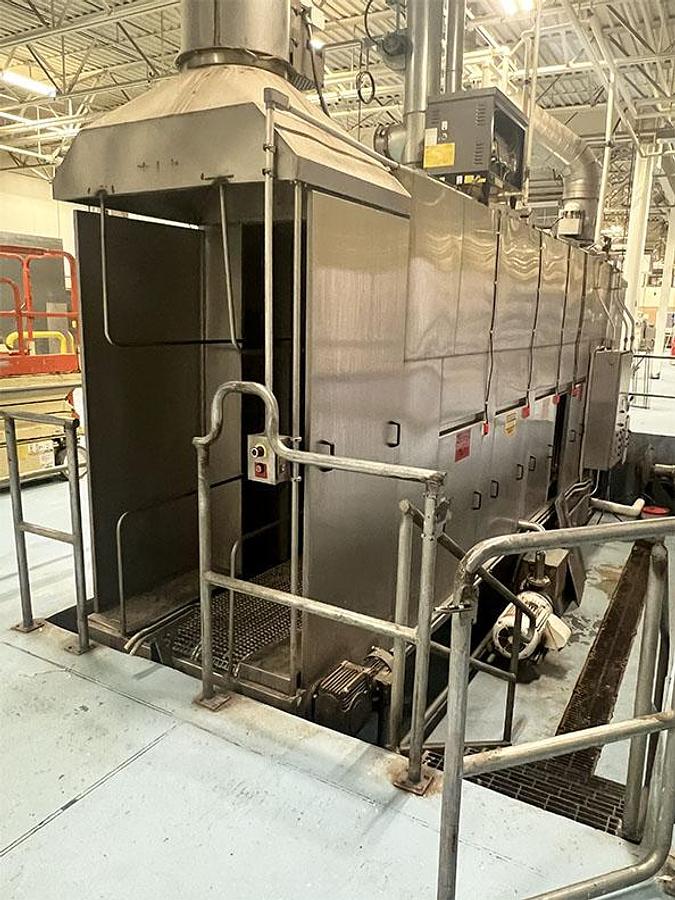

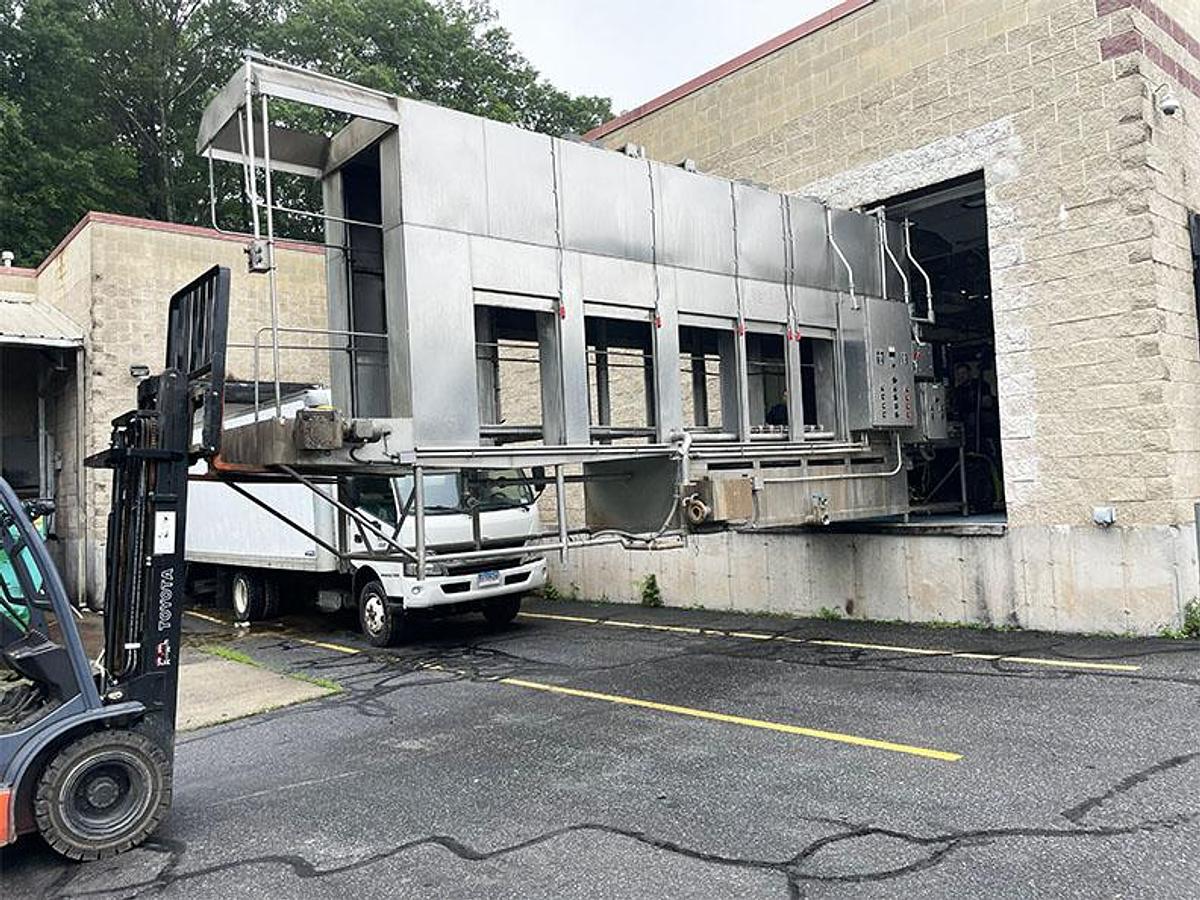

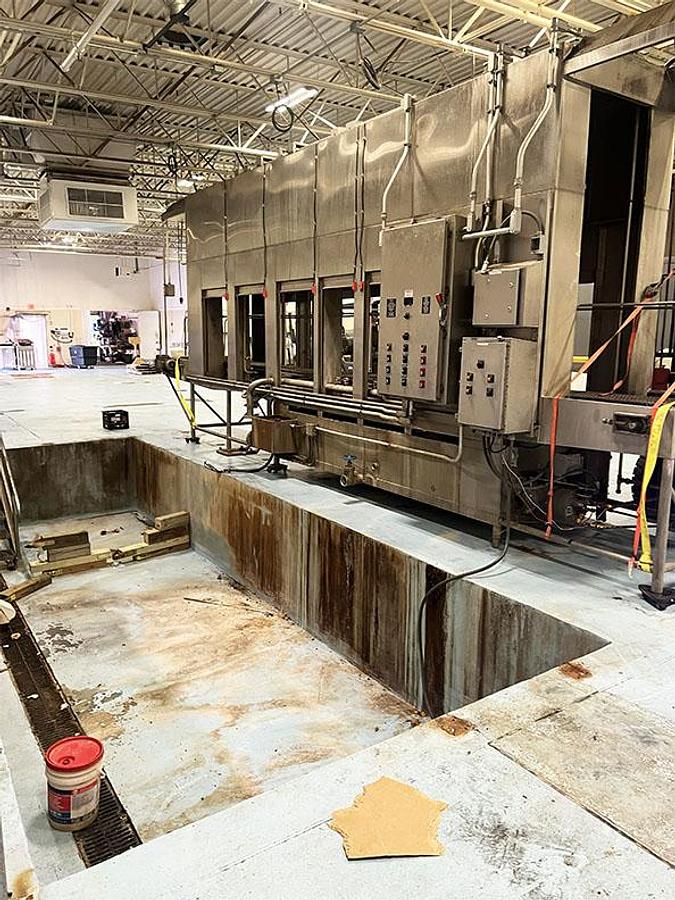

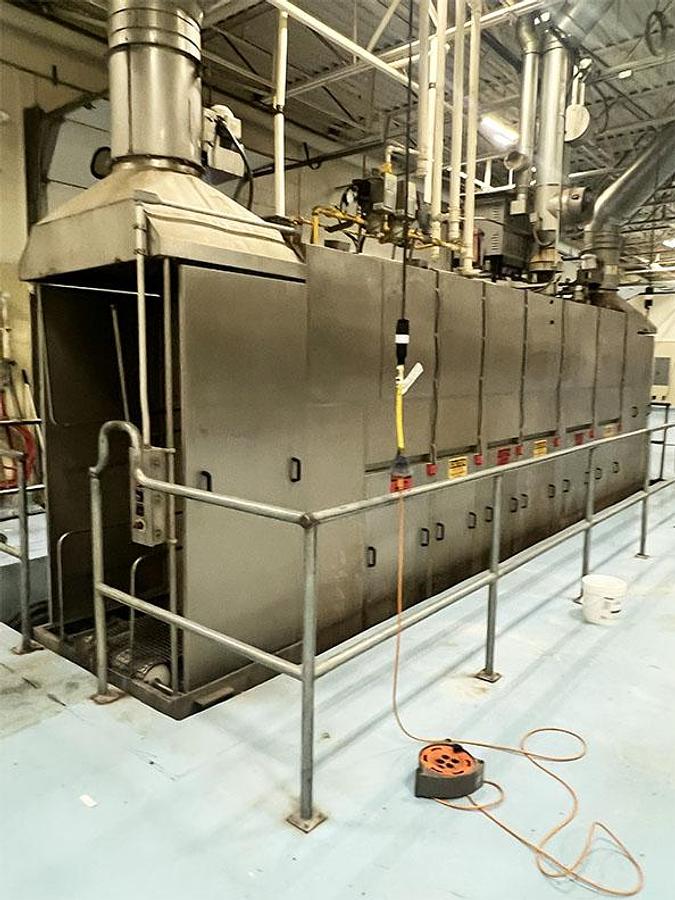

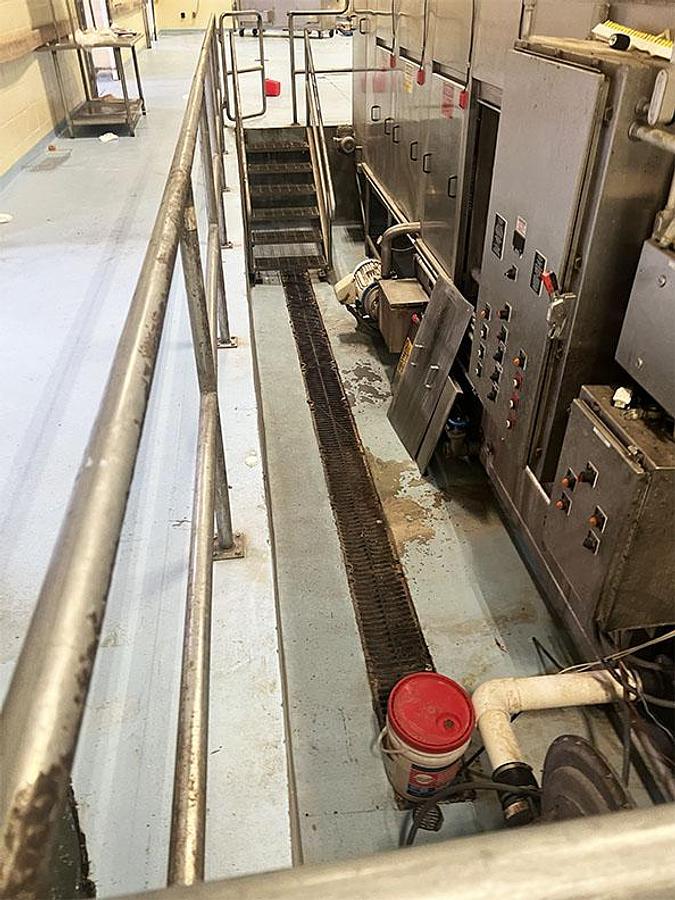

Douglas WR-150 Pass Thru Washer

Douglas Pass Thru Washer, M# WR-1500, Voltage: 460 v / 3 ph

Features:

* Aluminum Distribution Racks (21 1/2” x 29 3/4” x 71”) 240 pieces/hour at 11 FPM

* Aluminum Finishing Racks (23 3/4” x 26” x 74”) 240 pieces/hour at 11 FPM

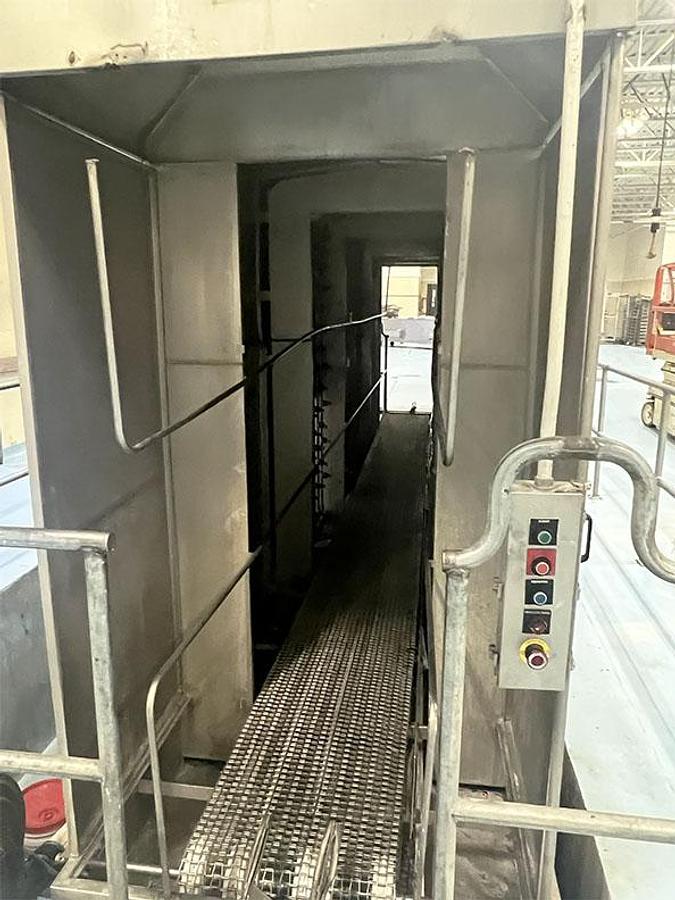

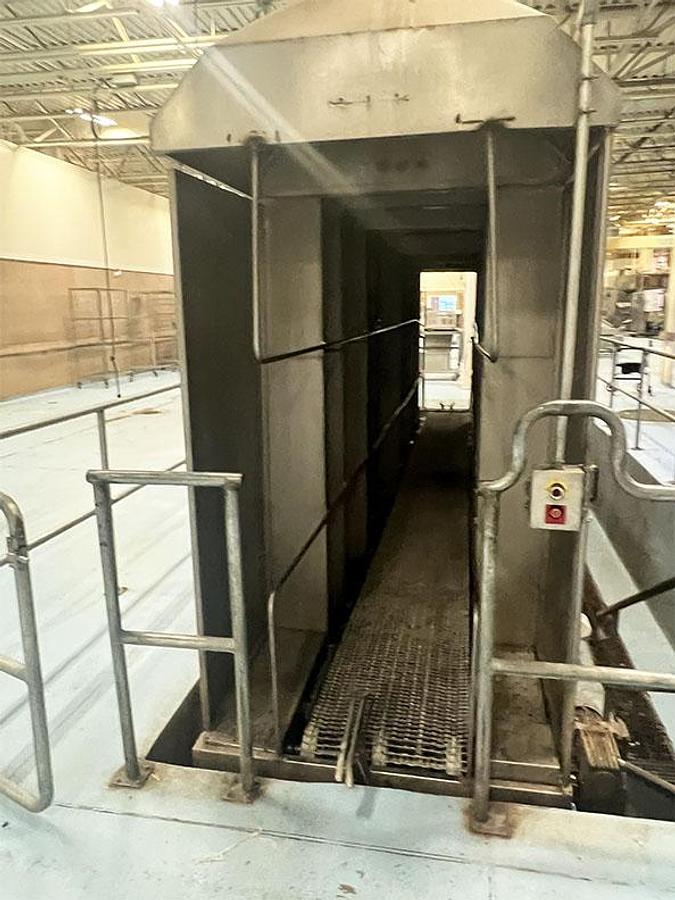

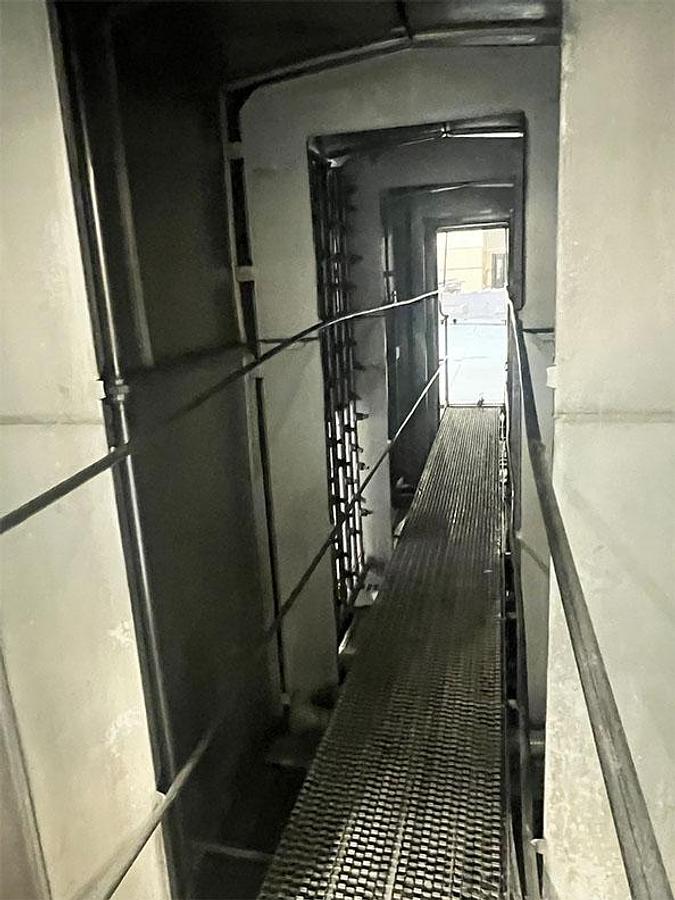

* A heavy duty STAINLESS STEEL belt transports racks through a 150° F. recirculating wash chamber.

* A dwell zone is also provided between the wash and rinse sections to help minimize cross contamination of rinse and detergent water

* Fixed product guides are provided to keep racks in place and prevent jamming.

* Booster heaters maintain proper operating temperatures.

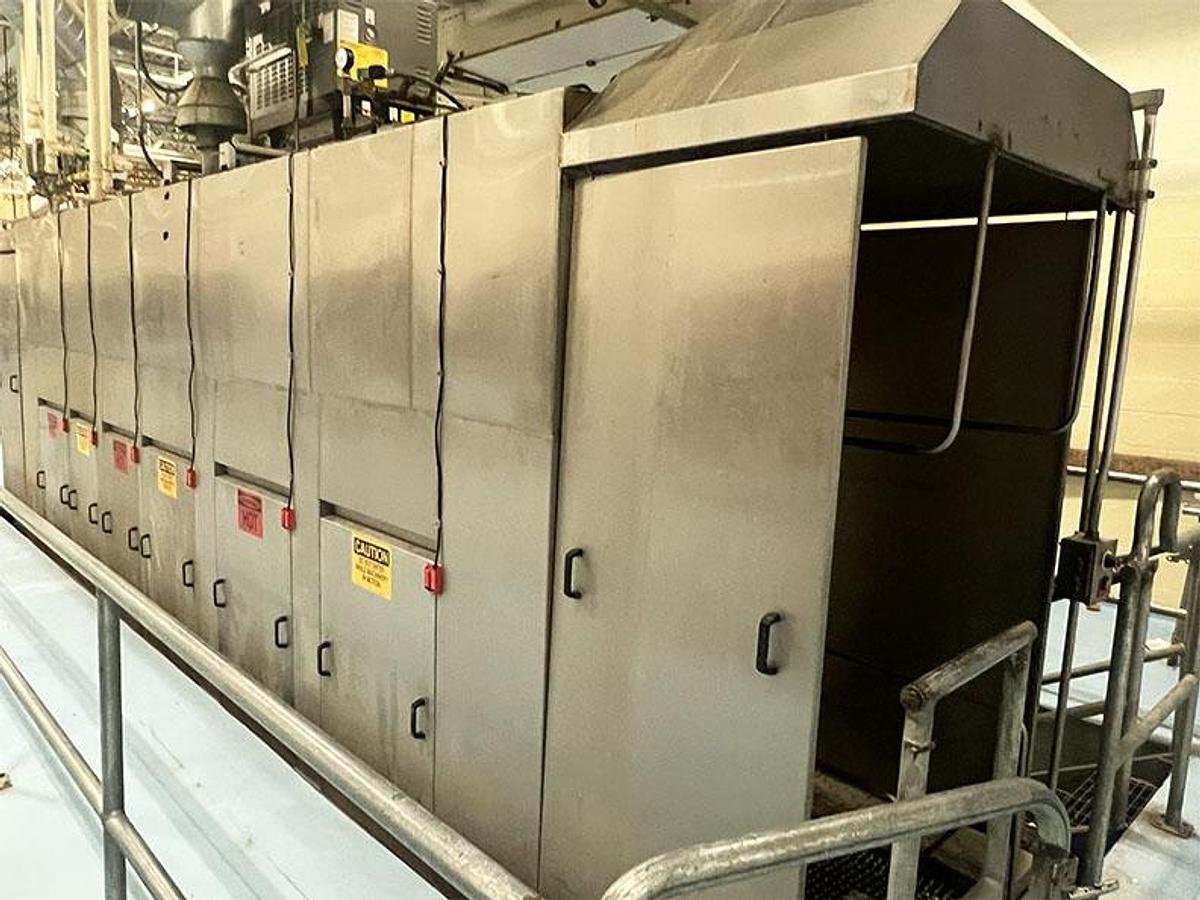

* Upper housing will be constructed of #14 and #16 gauge 300 Series STAINLESS STEEL with a #3 finish.

* Wash tank to be constructed of #12 gauge 300 Series STAINLESS STEEL also with a #3 finish.

* Base frame constructed of 1 1/2” and 1” STAINLESS STEEL piping.

* All seams are mig or tig welded. Seams, where needed for watertight construction and at tank base frame, are continuously welded.

* Recirculating wash tank heated by gas, thermostatically controlled.

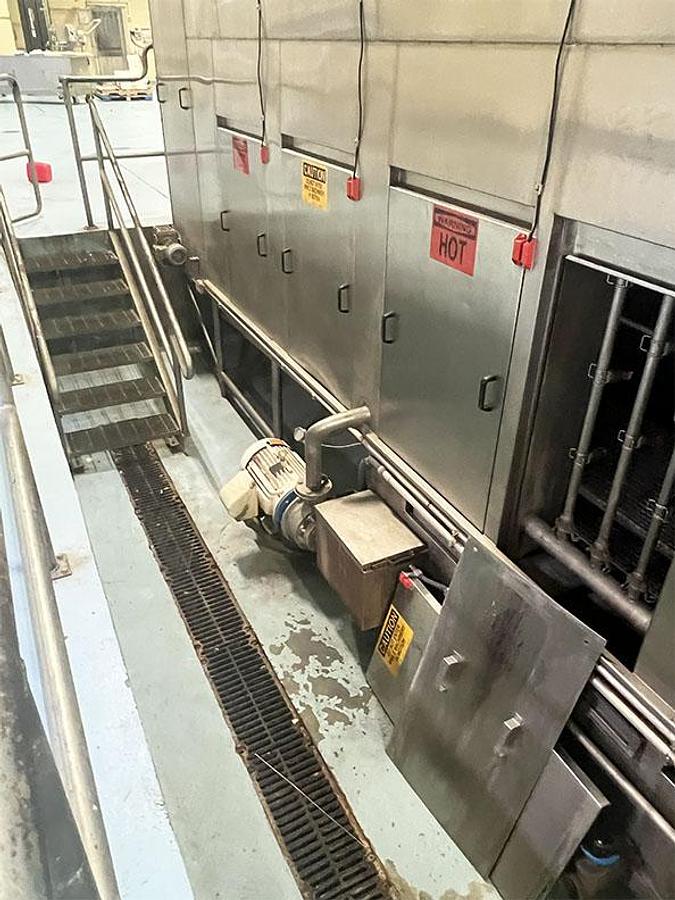

* Complete with 25 H.P. TEFCG or optional wash down duty motor

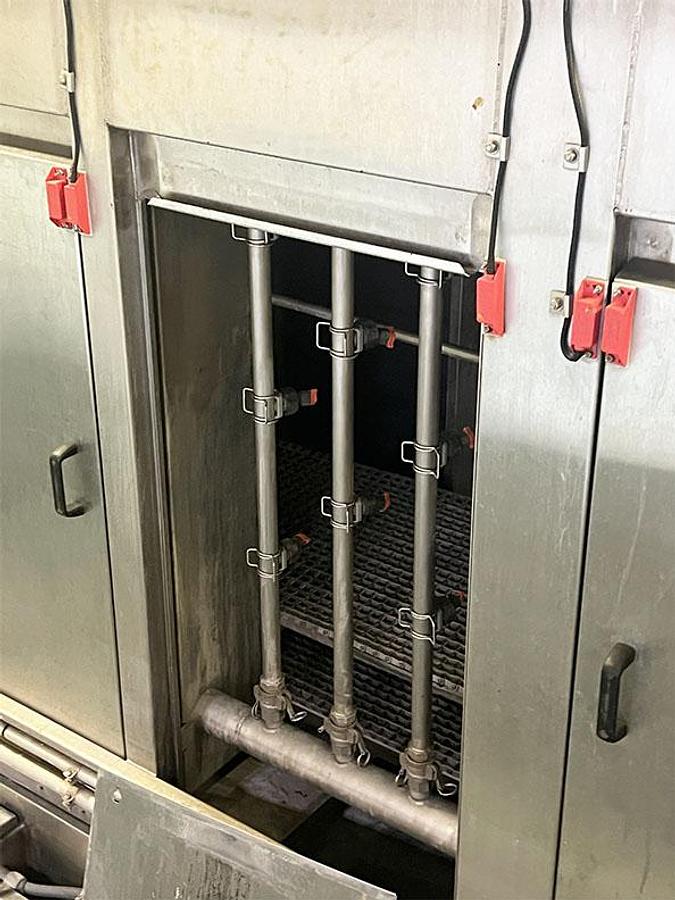

* Sanitizing rinse section delivers 7.56 GPM at 20 PSIGflow. 180° F.

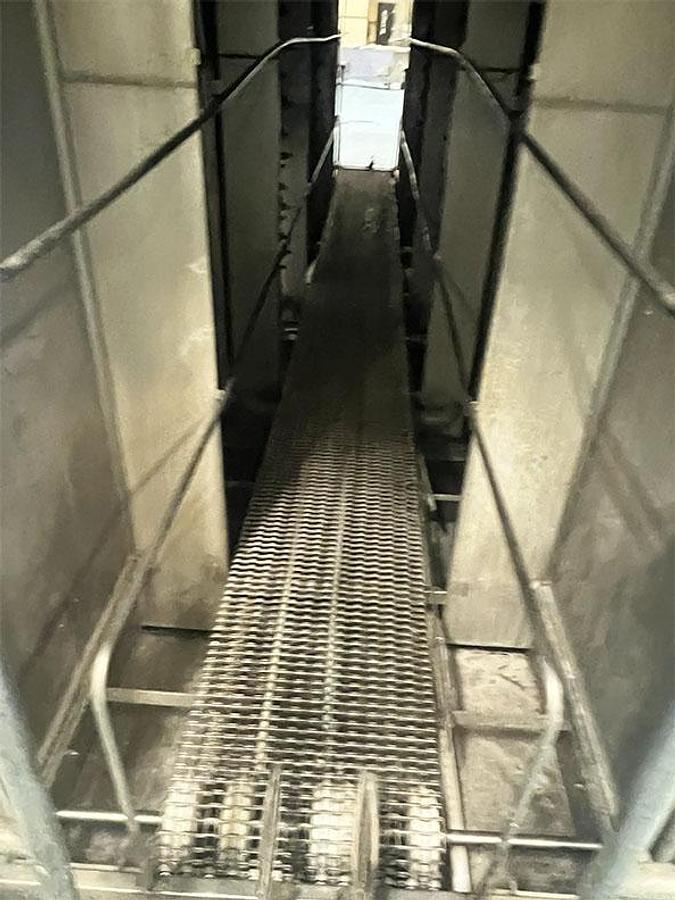

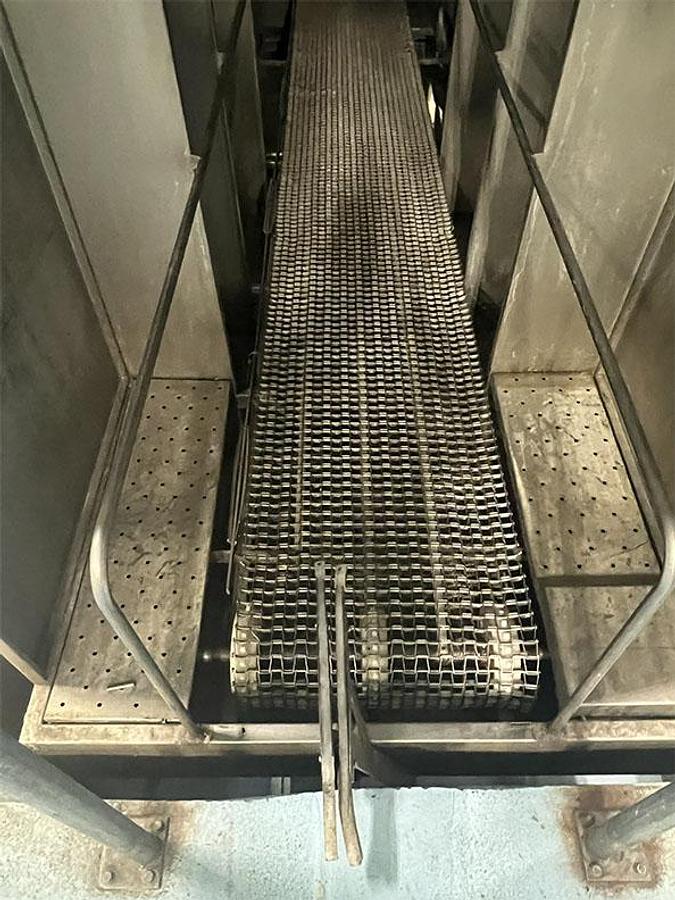

* One (1) 25” wide #304 STAINLESS STEEL 1” x 1” heavy duty flat wire belt complete with reversible A.C. variable speed inverter with ball detent clutch to prevent belt damage

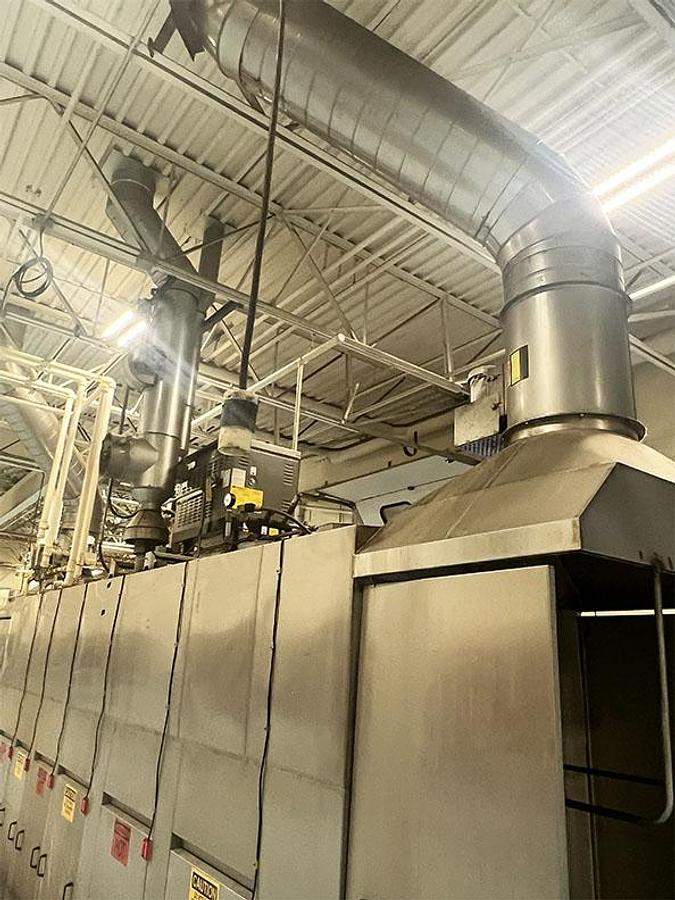

* Two (2) 12” diameter fans, mild steel painted or optional STAINLESS STEEL, mounted on hoods
